How Accurate Is Drone Photogrammetry?

On This Page

• What an accuracy number actually describes
• How the photogrammetry workflow creates accuracy
• Read the checkpoint report before accepting the map
• Where a good average can hide a bad result
• Specify the deliverable and its checks together
• Questions to settle before commissioning a survey

What an accuracy number actually describes

Ground sampling distance (GSD) describes image sampling: the spacing between neighboring pixel centers on the ground. At 2 cm GSD, that spacing is 2 cm. It does not mean that every mapped coordinate is within 2 cm of its true position. Flight height, camera geometry, terrain elevation, and camera angle affect GSD; a project average can conceal coarser sampling in part of the site. PIX4D's GSD documentation explains those relationships.

Relative accuracy concerns geometry within the reconstruction, such as the separation of two features. Absolute accuracy concerns where the reconstruction sits in the specified coordinate reference system. A model can preserve distances while the whole site is shifted relative to an engineering drawing.

PIX4D gives a general relative-error expectation of one to three times the original-image GSD for a correctly scaled and reconstructed project. With an assumed 2 cm GSD, multiplying by that guidance gives 2–6 cm. This is an illustrative planning calculation, not a measured RMSE or a confidence interval. PIX4D also warns that ordinary onboard GNSS without precise ground control can leave absolute positioning errors of a few meters. Its accuracy guidance distinguishes these cases.

Keep the horizontal and vertical requirements separate. A useful plan-view orthomosaic does not establish that the elevation model can resolve a shallow drainage slope. The specified surface matters too: the top of vegetation and the ground beneath it are different measurement targets.

How the photogrammetry workflow creates accuracy

Photogrammetry reconstructs geometry by finding the same visible features in overlapping photographs. The processing estimates camera positions, orientations, and calibration parameters, then produces three-dimensional points and derived maps. In a typical structure-from-motion workflow, camera calibration and scene reconstruction are solved together. Flight design therefore affects the geometry of the solution, not just area coverage.

The USGS calibration guidelines explain why ground control, image geometry, and processing must be treated as one system. A commercial workflow should close these steps in order:

1. Define the measurement. Name the feature or surface, allowable horizontal and vertical error, coordinate system, elevation reference, and area to be delivered. Identify the downstream GIS or design software before capture.
2. Design capture around the terrain. Choose image scale and overlapping views that cover the required surfaces. Check expected sampling over high and low ground. USGS discusses crossed flight directions as a way to strengthen calibration; its specific flight design is guidance for that method, not a universal recipe.
3. Establish positioning and ground references. Ground control points (GCPs) have surveyed coordinates used to constrain the model. Real-time kinematic (RTK) or post-processed kinematic (PPK) positioning can provide more precise camera locations. Neither removes the need to demonstrate the delivered result's accuracy.
4. Reserve independent checks. Decide which surveyed points will be used for testing before optimizing the model. Distribute them across relevant parts of the site rather than choosing only convenient, easy-to-image locations.
5. Process and inspect. Review calibration, image alignment, coverage, point-cloud artifacts, and the actual exported products. Retain the processing version and settings needed to explain or reproduce the result.
6. Measure errors and hand over the evidence. Deliver checkpoint comparisons, reference-survey information, exceptions, and files that import in the agreed coordinate system and units.

USGS emphasizes distributing control in both plan and elevation and selecting stable tie features rather than moving leaves. Adding photographs cannot compensate for an incorrect reference coordinate or a surface that was never visible. Better ground measurements may be necessary when the required output tolerance approaches the uncertainty of the control itself.

Read the checkpoint report before accepting the map

A low error at a GCP describes how closely the model fits a point used to constrain it. An independent checkpoint tests a location whose surveyed coordinates were held out of that fit. PIX4D's tie-point documentation distinguishes control, automatic image matches, and checkpoints. Ask how the software uses each point type, and retain the point assignments with the report.

Start with the actual differences between the deliverable and the surveyed checkpoint coordinates. Require signed errors for each axis, the number and locations of points, and the summary statistics. A signed mean can reveal an overall shift; RMSE summarizes the magnitude of discrepancies by squaring them before averaging, so positive and negative errors do not cancel.

For a transparent illustration, suppose five vertical differences are +1, −1, +2, −2, and +4 cm. These are hypothetical arithmetic inputs, not survey observations:

Vertical checkpoint RMSE = √[(1² + (−1)² + 2² + (−2)² + 4²) ÷ 5] = √5.2 = 2.28 cm, rounded to 2.3 cm.

The mean signed difference is +0.8 cm and the largest absolute difference is 4 cm. Those describe different aspects of the same small example. A 2.3 cm RMSE does not promise that every location is within 2.3 cm, and five illustrative points do not establish standards compliance for a real project.

Formal reporting also needs the reference survey's uncertainty. USGS's summary of ASPRS Edition 2, Version 2 changes explains the inclusion of checkpoint survey accuracy and the removal of 95% confidence level as an accuracy measure in that edition. Agree on the applicable edition, checkpoint count and distribution, and complete calculation method; do not relabel the simple calculation above as a standards-compliant final accuracy figure.

Finally, distinguish coordinate errors from image reprojection error, which is measured in pixels. PIX4Dcloud's report documentation lists these separately, along with GCP and checkpoint statistics. Green processing indicators alone do not answer whether the exported deliverable meets your project requirement.

Where a good average can hide a bad result

Weak viewing geometry: A well-controlled central area does not prove that a long corridor, steep face, or poorly covered edge has the same error. Ask for a map of checkpoint locations and residuals. Test the regions and elevation ranges that matter to the intended measurement.

Unreliable image matches: Blur, reflective surfaces, moving vegetation, and indistinct textures can create gaps or local reconstruction errors. PIX4D's accuracy guidance specifically flags trees, sharp edges, and reflective surfaces. Review original photographs and the reconstructed surface around critical features; a smooth rendering can conceal missing information.

An unsuitable surface model: An image-derived model follows visible features. Where foliage hides the ground, a convincing canopy surface is not proof of bare-earth elevation. A buyer needing terrain beneath dense cover should require another measurement method or documented ground observations for the hidden areas.

A reference-system mismatch: The handover must identify horizontal and vertical coordinate systems, axis units, and any geoid model used. PIX4Dcloud records those fields because the exported coordinates need a defined interpretation. As a practical handover check, import the files into the receiving system and compare known reference locations before using them for design or quantities.

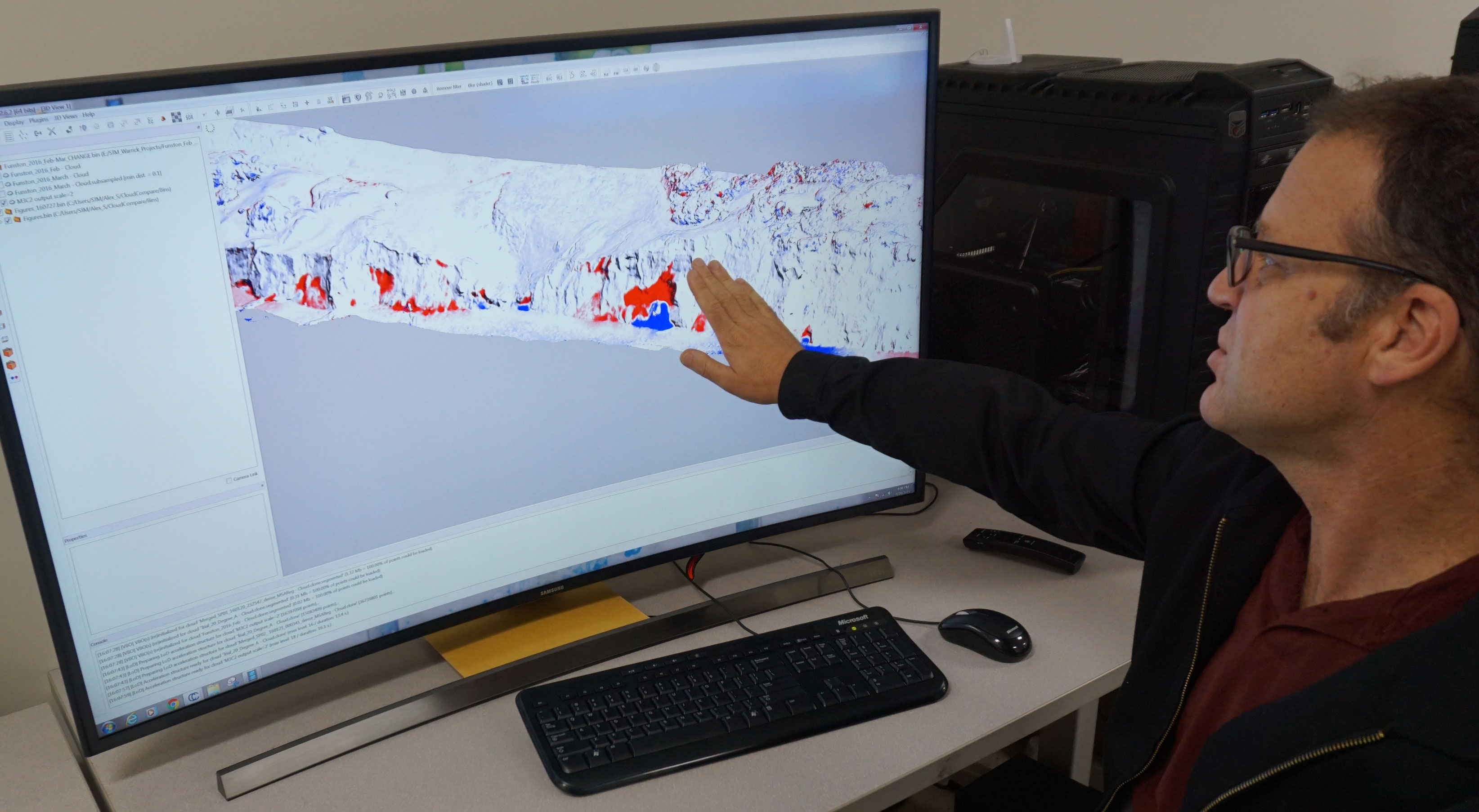

A misleading change measurement: Two flights can each look internally consistent while differing in overall position or local geometry. For repeat monitoring, compare stable areas as well as the changing surface. The dryland study assessed repeatability separately from single-date accuracy, illustrating why an apparent difference needs its own uncertainty assessment. Do not treat a small elevation difference as detected change merely because it spans several image pixels.

For a broader distinction between a visible observation and a measured conclusion, see what a drone inspection can actually prove.

Specify the deliverable and its checks together

The table below is an editorial commissioning guide based on the USGS calibration guidance and PIX4D reporting documentation, checked September 7, 2026. It proposes what to request; it does not assign universal tolerances to these applications.

Quantity accuracy does not follow directly from point accuracy. For example, an assumed uniform 3 cm error in average pile height over an assumed 1,000 m² footprint produces a 30 m³ volume difference: 0.03 m × 1,000 m². This simplified sensitivity calculation assumes a fixed footprint and a uniform height bias. It is not a prediction of stockpile error; it shows why the base surface and systematic offsets deserve attention alongside checkpoint RMSE.

Questions to settle before commissioning a survey

Ask the provider to answer these in the scope of work:

• What horizontal and vertical error will be reported, using which statistic, units, and testing method?
• Which surface, site boundary, and downstream decision does the promise cover?
• How will control and independent checkpoints be surveyed, separated, and distributed?
• What coordinate reference systems, elevation reference, and units will the delivered files use?
• Which surfaces or areas cannot be measured reliably, and how will those gaps be identified?
• What raw point comparisons, processing details, and corrective work are included if the deliverable misses the agreed requirement?

Accept a centimeter-level claim only when the delivered evidence supports it for the required surface and use. A clear scope, suitable ground references, and independent checks turn drone photogrammetry accuracy into something a buyer can evaluate before relying on the result.

Source notes

• USGS: Fine-resolution repeat topographic surveying of dryland landscapes. Record and abstract of a 2017 peer-reviewed study; establishes the stated field results and their comparison method.
• PIX4D: Ground sampling distance in photogrammetry. Provider documentation defining image sampling and its dependence on capture geometry.
• PIX4D: Relative and absolute accuracy of drone mapping. Provider guidance on conditional error ranges, georeferencing, and local limitations.
• USGS: Guidelines for calibration of uncrewed aircraft systems imagery. 2023 technical report on acquisition, camera calibration, control distribution, and data quality; its older standards references are not used as current compliance requirements here.
• PIX4D: Tie points in photogrammetry projects. Provider documentation distinguishing ground control, checkpoints, and image tie points.
• USGS: Adopt updated accuracy standards. Official explanation of ASPRS Edition 2, Version 2 changes in the context of the Lidar Base Specification; used for reporting distinctions, not to impose lidar requirements on drone projects.
• PIX4Dcloud: Quality report help. Provider documentation explaining coordinate systems, checkpoint errors, and image-space diagnostics.

Last checked: September 7, 2026.
