What a Cell Tower Drone Inspection Report Should Include

On This Page

• The contents to specify in the report
• Give the provider the right inputs
• How photographs become actionable findings
• Require measurements that can be checked
• Keep the conclusions within the evidence
• Accept the files and the follow-up plan

The contents to specify in the report

Use the following as a buyer's report checklist. It is a recommended purchasing specification, not a claim that every tower owner uses one mandatory template. Adapt the coverage to the asset and intended decision.

The table combines editorial recommendations with the documented separation of project details, annotations, imagery, and measurement outputs in inspection software. For example, the PIX4Dcloud Pro annotations-report documentation describes project information, annotation properties, screenshots, and inspection details in a PDF. Those are useful building blocks; the buyer must still specify coverage, interpretation, and responsibilities.

Put the most consequential findings and coverage gaps in the opening summary. A report with no listed defects means little if the back of a critical connection was never visible. Keep findings and incompleteness separate so a clean-looking summary cannot conceal unfinished work.

Give the provider the right inputs

Begin with the decision the report will support. A maintenance planner may need annotated condition photographs. An installation team may need an equipment inventory reconciled against the approved design. An engineer assessing a proposed modification may need checked geometry and additional records. The capture plan should follow that purpose.

Supply the owner-approved site identifier and component naming convention, available drawings and their revisions, equipment schedules, earlier inspection records, and known problem areas. Identify which documents are current and which are historical. A discrepancy against an obsolete drawing should not automatically become an installation defect.

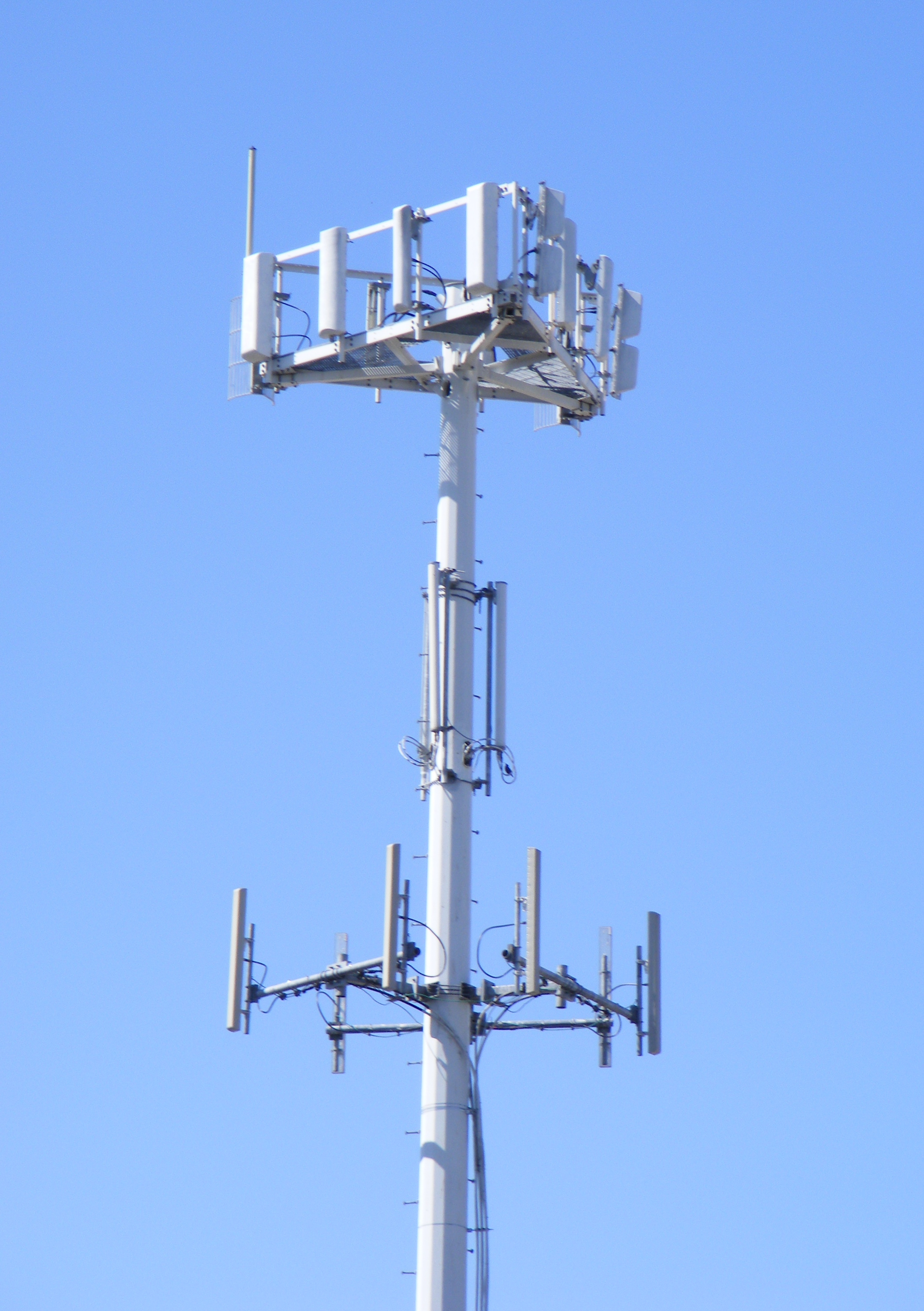

Define the physical boundary explicitly. Include or exclude antenna faces and backs, mounts and connections, cable routes, the tower body, and the compound. Address foundations and guy-wire anchors where applicable. State whether ground photographs supplement aerial views, especially where equipment or vegetation obstructs the camera.

Provide access arrangements, contact responsibilities, known site restrictions, and the owner's instructions for coordination around operating equipment. Ask the operator to flag constraints that could prevent agreed coverage. The reporting consequence matters: if a required viewpoint cannot be captured under the planned conditions, the proposal should identify an alternative or a recorded exclusion before the crew mobilizes.

Agree on the output with the people who will receive it. Confirm the asset-management fields for maintenance users, coordinate and file requirements for engineering users, and who will review the result. A sample report with sensitive site details removed is more useful than a list of software features.

How photographs become actionable findings

The commercial workflow has distinct handoffs: the field team captures and checks coverage; an analyst organizes the evidence and records observations; a suitably qualified reviewer interprets findings within the commissioned scope; the asset owner assigns follow-up work. Name the responsible party at each handoff, including who decides whether a return visit is needed.

Preserve the route back to the original image

Each finding needs a stable identifier and a location understandable without the pilot's memory. Use the owner's site ID, level or elevation reference, sector or face, and component ID. Pair a context view showing the location with a detailed view showing the observation, and retain both original filenames. An annotated crop should supplement the full photograph.

Inspection software can help maintain that connection. PIX4Dcloud's Virtual Inspector links selected model locations to full-resolution project images and supports saved image annotations. A model is therefore a navigation aid as well as a possible measurement product. Require the delivered report to preserve the connection even when the recipient opens an exported PDF instead of the online model.

Separate observation, interpretation, and action

Write what the image shows before assigning a cause. For example, an illustrative finding might read:

Finding F-014, upper antenna mount, site-defined sector B: a dark line is visible beside the connection in the context image and two detail views. The cause is unresolved from these images. Refer to the responsible structural reviewer to determine whether additional close inspection is needed.

This is a wording example, not a finding from an inspected tower. Its useful feature is the separation between visible appearance and diagnosis. Calling the same line a confirmed crack would require evidence that supports that conclusion.

Add priority using the owner's agreed definitions, the reason for that priority, the action owner, and the requested response date. Image confidence and maintenance urgency answer different questions: an uncertain observation can still need prompt specialist attention. Agree on an escalation contact and notification procedure for potentially urgent findings instead of holding them until the final report is delivered.

For repeat visits, preserve component and finding IDs. Record whether an item is newly observed, unchanged, changed, resolved, or not assessable in the new capture. Require closure evidence to show the relevant area after corrective work. A different viewing angle or missing photograph is not proof that the original issue disappeared.

Require measurements that can be checked

Photogrammetry estimates three-dimensional geometry from features matched across overlapping images. Successful reconstruction depends on more than the camera's pixel count. PIX4D's tower-mapping guidance identifies thin, tall, reflective structures as difficult subjects and describes capture from multiple viewpoints. A visually convincing surface can still leave a particular connection poorly represented.

For every requested dimension, identify the exact endpoints or surface, units, coordinate system or local reference, and verification method. Record the processing software and version, along with any manual correction that affects the reported geometry. If antenna height is reported, define whether it refers to the top, bottom, or center and which ground or elevation reference is used. For azimuth, the horizontal pointing direction, identify the north reference. For tilt, identify the measured axis and sign convention.

The USGS imagery-calibration guidance explains that control-point accuracy and tie-point quality contribute to geometric accuracy independently of nominal ground sample distance. Ground sample distance describes image sampling on a surface. The error of a dimension taken from a tower model needs its own evaluation.

Ask for checks appropriate to the actual tower measurements, with the reference method and results reported. Distinguish control used to fit the reconstruction from independent checks used to evaluate it. Require an explanation if the checks do not represent the height, surfaces, or dimensions used for the decision. Agree the permissible error with the responsible recipient before capture, rather than accepting an undefined promise of centimeter accuracy.

Do not confuse mechanical tilt with electrical tilt. The first concerns physical antenna orientation. CommScope's explanation of electrical downtilt describes changing the radiated beam through electrical phase adjustments while the antenna can remain upright. A geometric measurement of the enclosure cannot, by itself, establish the current electrical setting. Use a separately identified configuration record or appropriate verification for that field.

When comparing measurements with a design, include the design revision, nominal value, allowed tolerance, measured value, and measurement limitation. If the available accuracy cannot distinguish an acceptable installation from an unacceptable one, report the comparison as unresolved and identify the further check required. Avoid presenting extra decimal places as extra certainty.

Keep the conclusions within the evidence

A visual condition report, a geometric survey, and a structural assessment serve different purposes. In PIX4D's documented 2016 antenna-mount project, the engineer used photographs and a point cloud for measurements, followed by CAD analysis. That historical example illustrates the handoff to engineering. Tower certification and current inspection performance require their own supporting evidence.

State which conclusions require work beyond the captured imagery. A photograph showing a bolt does not measure its tightening torque. Electrical continuity requires verification beyond a visible cable or grounding connection. Concealed material condition and structural capacity likewise require evidence beyond a model of exposed surfaces. Where those matters control the decision, specify the responsible specialist and the additional records, calculations, or tests to obtain.

Equipment identity also needs a basis. Distinguish a readable label from an owner-supplied equipment record and a visual estimate. Preserve unreadable or uncertain entries as such; do not promote an antenna's apparent shape into a verified model number or configuration.

Keep a coverage register with separate states for observed with no relevant issue identified, observed with a finding, partly observed, and not observed. State the reason for incomplete coverage and its effect on the report's conclusions. This is particularly useful for antenna backs, crowded mounts, and connections hidden behind other hardware.

The distinction between observation, measurement, and diagnosis is developed further in what drone-inspection evidence can prove. Apply that distinction to each conclusion rather than placing a broad disclaimer at the back of the report.

Accept the files and the follow-up plan

Make deliverables measurable by defining their contents and usability. Specify an indexed original-image set; a report with every finding ID; a machine-readable findings register if the maintenance system needs one; and any expressly commissioned model, point cloud, or measurement schedule. For a spreadsheet or CSV handoff, agree column names, units, status values, and the image-reference format with the receiving team.

Reconcile the required views against delivered usable views, incomplete views, and accepted exclusions. Keep the original required list visible when exclusions are accepted, so the report still shows what the visit did not inspect. Image count alone is a weak completion measure because repeated views can leave the same important component unseen.

Request a file manifest with filenames, formats, revisions, and relationships to site and finding IDs. Confirm that the model's supporting files and coordinate information travel with the export. Retain a fixed copy of the report corresponding to the reviewed data, so later online edits do not silently change the record used for a maintenance decision.

Check download rights separately from viewing rights. The PIX4Dcloud download documentation distinguishes reports, input-image bundles, point clouds, and meshes, and states that shared links do not allow output downloads. That is a concrete reason to test the handoff using the recipient's access, not just the provider's screen.

Before accepting the job, work through these buyer questions with a sample finding and the proposed deliverable:

1. Can the maintenance team locate the component and open its original images without assistance?
2. Does every required view have usable evidence or an explicitly accepted coverage gap?
3. Are measurement references, verification results, and unresolved comparisons visible to the engineering recipient?
4. Can the recipient open the agreed exports in the intended software, with units and coordinates understood?
5. Who corrects missing or inadequate data, who approves extra work, and what are the agreed delivery and revision dates?
6. Which access, storage, retention, download, and deletion terms apply after the project or hosting agreement ends?
7. Who owns each follow-up action, and what evidence is required to close it?

Choose a reporting scope your receiving team can use. Indexed photographs and a well-reviewed findings register may be sufficient for a visual maintenance task. Commission checked geometry when dimensions affect the decision, and separately define any engineering conclusion. Acceptance should confirm both the promised evidence and the handoff needed to act on it.

Source notes

• PIX4Dcloud Pro annotations report: software documentation describing PDF report contents and annotation handling.
• PIX4Dcloud Virtual Inspector: software documentation explaining the connection between model locations, original photographs, and saved image annotations.
• PIX4Dmapper pole and tower mapping: technical guidance on reconstruction difficulties and capture viewpoints for slender structures.
• USGS Guidelines for Calibration of Uncrewed Aircraft Systems Imagery: government technical report on geometric quality, calibration, control, checks, and metadata; not a tower-report certification standard.
• CommScope on mechanical and electrical downtilt: manufacturer technical explanation supporting the distinction between physical orientation and electrical beam adjustment.
• PIX4D cell-tower antenna-mount project: historical provider case study showing imagery and point-cloud measurements feeding subsequent CAD analysis.
• Downloading PIX4Dcloud results: current software documentation distinguishing output formats, report and image downloads, and shared-link restrictions.

Last checked: September 6, 2026.
