How to Select an IMU for a Commercial UAS

On this page

• Start with the aircraft, not the data sheet
• Translate the mission into IMU requirements
• Read range, bandwidth, rate, and latency together
• Compare noise and bias without mixing terms
• Treat temperature and vibration as primary requirements
• Close calibration and traceability
• Evaluate the electrical and data interface
• Decide what redundancy actually covers
• Build an evidence-based shortlist
• Verify the selected IMU in the aircraft

Start with the aircraft, not the data sheet

An IMU is not selected in isolation. Its measurements feed an attitude or navigation estimator, which feeds control, guidance, mission logic, payload pointing, georeferencing, or several of those functions. Each consumer has a different tolerance for noise, delay, drift, resets, and outages.

Define the decision boundary before comparing parts:

• aircraft type, mass properties, maximum angular rates, acceleration, shock, and structural vibration;
• control-loop bandwidth and acceptable phase delay;
• attitude, velocity, position, and pointing requirements by mode;
• normal aiding sources and the maximum required unaided interval;
• startup, alignment, calibration, and recovery time;
• temperature, altitude, moisture, contamination, electromagnetic, and power environment;
• allowable size, mass, power, heat, connector, and processor load;
• redundancy and common-cause objectives;
• production quantity, service life, repair strategy, and obsolescence plan; and
• required qualification, acceptance, traceability, and configuration records.

The IMU, AHRS, and INS comparison helps fix the output boundary. If the receiving flight computer needs calibrated angular rate and specific force, the purchase is an IMU decision. If it needs attitude or position and velocity from the device, the supplier's estimator, aiding, and validity logic become part of the selection.

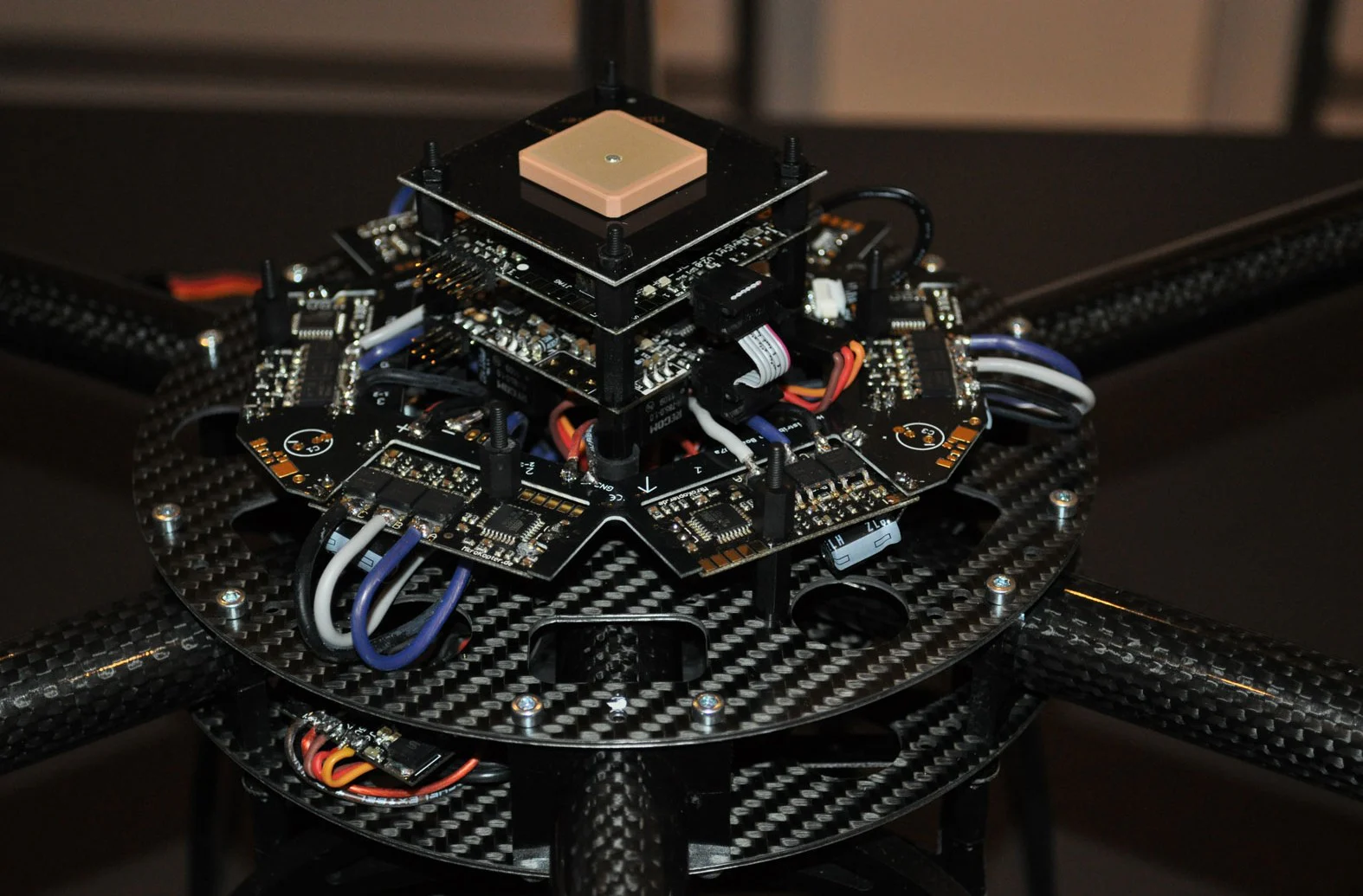

The broader drone navigation architecture shows why a component accuracy figure cannot establish flight performance on its own. State-estimator assumptions, controller timing, actuator response, and mode logic remain outside the IMU.

Translate the mission into IMU requirements

Start with measurable system behavior, then allocate it to the sensor, installation, and estimator. The following matrix is a requirements prompt, not a universal set of values.

Allocate margins explicitly. The maximum body rate from the flight envelope is not necessarily the maximum rate at the sensor during a hard landing, propeller strike, control upset, structural resonance, or test event. Likewise, the navigation outage requirement may be only seconds while the pointing system needs low jitter continuously.

Requirements also need conditions and statistics. “Gyro bias below 5 degrees per hour” is incomplete without temperature, elapsed time, warm-up, axis, confidence, averaging method, vibration, mounting, and whether the value is typical or guaranteed.

Read range, bandwidth, rate, and latency together

Measurement range is the largest positive and negative angular rate or specific force the device can represent. A sample beyond full scale clips. Once clipped, the estimator cannot reconstruct the missing magnitude from that measurement. Repeated clipping can corrupt attitude, velocity, and position.

Bandwidth describes how the sensor and its analog or digital filtering respond across frequency. It is not the same as sample rate. A high sample rate cannot recover motion removed by an internal low-pass filter, and it cannot prevent aliasing if energy above the effective Nyquist frequency reaches the sampler without adequate attenuation.

Sample rate is how often the sensing chain creates a measurement. Output rate is how often a message is published. One output may aggregate multiple samples, and a fast output can repeat or filter older information. Ask for both, plus decimation, coning and sculling processing, and the conditions under which samples are dropped.

Latency is the time from physical motion to the measurement's use. Break it into sensing, internal filtering, device processing, bus transfer, driver, estimator scheduling, and output prediction. A stable known delay can often be modeled. Variable delay and an inaccurate sample timestamp are harder to compensate.

These quantities create a real trade:

• more range reduces clipping risk but can reduce resolution or worsen noise in a particular design;
• more bandwidth preserves fast motion but admits more noise and vibration;
• stronger filtering reduces noise but adds delay and phase shift;
• a faster interface reduces transfer time only if the device timestamp and internal pipeline are also correct; and
• a higher output rate increases bus and processor load without guaranteeing fresher physical information.

Request amplitude and phase response, filter configuration, group delay, timestamp definition, clock accuracy, synchronization mechanism, and clipping or saturation indicators. Test those properties in the released configuration rather than inferring them from the serial-bus bit rate.

Compare noise and bias without mixing terms

IMU specifications describe different error processes. Treating them as one “accuracy” number leads to poor comparisons.

VectorNav's IMU specification primer distinguishes bias, scale factor, noise, misalignment, acceleration sensitivity, and vibration rectification. Analog Devices' technical MEMS IMU glossary likewise separates Allan-variance terms, noise density, cross-axis sensitivity, linear acceleration effects, and vibration rectification. Both are manufacturer educational sources. Use their definitions to normalize comparisons, not as independent validation of a vendor's product claim.

Unit conversion is part of the review. Gyro noise may appear as degrees per second per square-root hertz, degrees per square-root hour, or an RMS value over a declared bandwidth. Accelerometer noise can similarly be expressed in g, meters per second squared, or velocity random walk units. Convert each value to the system error budget with the actual bandwidth and estimator behavior.

Do not rank sensors using only the lowest typical in-run bias stability. A vehicle that power-cycles frequently may care more about repeatability and warm-up. A high-vibration multirotor may be limited by rectification, clipping, or mounting. A fast vehicle may need range and latency before it benefits from a lower laboratory noise floor.

Treat temperature and vibration as primary requirements

The installed IMU experiences heat from processors, sunlight, propulsion, batteries, airflow, altitude, and enclosure conduction. Its temperature can change during the flight even when ambient temperature is stable. Specify the sensor's operating and survival ranges separately from the range across which calibrated performance is required.

Ask how bias, scale factor, axis alignment, noise, and delay change over temperature. Determine whether compensation occurs inside the device, in the flight computer, or both. Two compensators using mismatched temperature sensors or calibration tables can make behavior harder to trace.

Vibration needs both spectral and time-domain treatment. Motor rotation, propeller blade passage, combustion or turbine sources, gearing, pumps, structural modes, payload mechanisms, and aerodynamic excitation can place energy at different frequencies. Shock and transient events may cause clipping without dominating an averaged RMS value.

NASA's UAV IMU vibration-health study compared accelerometer behavior before and after representative aerospace vibration exposure and examined changes such as drift and temperature response. It does not rank current commercial products or define a qualification level for every UAS. It supports the narrower point that vibration exposure can be both an immediate measurement environment and a lifecycle degradation mechanism.

PX4's EKF2 documentation identifies clipping and aliasing from vibration as common contributors to estimator divergence and recommends examining innovations and installed isolation. That is one autopilot implementation, but it shows why the buyer should require clip counters, raw or prefiltered logs, temperature, device identity, error counts, and estimator diagnostics.

Isolation is a system design, not a universal cure. A soft mount can amplify motion near its resonances, change alignment under maneuver, or age. The IMU, board, enclosure, connector, cable, fasteners, and isolator need analysis and test as an assembly on the airframe.

Close calibration and traceability

Calibration estimates repeatable relationships such as bias, scale factor, nonlinearity, axis alignment, and temperature response. Characterization measures behavior that may not be removed by calibration, including random noise, in-run stability, and response to vibration.

The VectorNav calibration and characterization primer describes rate-table, tumble, thermal-chamber, Allan-variance, and vibration methods. Again, it is a manufacturer primer, not an independent qualification record. Its useful distinction is that a calibration coefficient cannot remove every stochastic or environment-dependent error.

Ask the supplier or integration team:

• which coefficients are determined for each serialized unit and which are family-level typical values;
• which axes, rates, accelerations, temperatures, dwell times, and histories are exercised;
• whether coefficients live in the IMU, flight computer, production database, or several locations;
• how the active calibration set is identified and protected;
• whether board assembly, enclosure, mounting, repair, or replacement invalidates any part of calibration;
• which measurement standards and equipment support the result;
• what uncertainty accompanies the calibration; and
• how drift, aging, or a failed self-test triggers recalibration or removal.

NIST's metrological traceability explanation defines traceability through a documented, unbroken calibration chain in which each calibration contributes to measurement uncertainty. A sticker saying “NIST traceable” is not the evidence. The record should identify the measured quantity, result, uncertainty, procedure, standards, dates, environmental conditions, and chain applicable to that unit.

Installed alignment is a separate calibration boundary. Internal sensor axes can be well calibrated while the case is rotated relative to the airframe or a camera boresight. Control and navigation need the complete transform from sensing axes to each consuming frame.

Evaluate the electrical and data interface

An IMU that meets laboratory performance but cannot deliver deterministic, valid data to the estimator is not an acceptable selection. Review the interface with the same discipline used for any flight-critical payload or subsystem.

Electrical: input voltage and transients, current by mode, startup inrush, brownout behavior, grounding, conducted emissions and susceptibility, electrostatic protection, logic levels, connector retention, and fault containment.

Data: physical bus, protocol, message definition, units, frame, byte order, scaling, valid ranges, checksums, sequence numbers, sample aggregation, device identity, configuration readback, and backward compatibility.

Timing: sample timestamp, clock source, synchronization input or output, oscillator behavior, fixed delay, jitter, batching, bus arbitration, and behavior when the receiver misses deadlines.

Health: startup self-test, continuous monitoring, saturation and clip counters, internal temperature, communication errors, reset reason, calibration status, fault latching, and invalid-data representation.

Software: driver ownership, supported operating system and autopilot versions, update process, safety and security maintenance, configuration schema, diagnostic tooling, and supplier change notification.

The payload integration interface gate provides a broader physical, electrical, data, timing, environmental, control, and verification framework. An IMU may be internal to the flight controller, but the same interfaces still exist between the sensing element, board, firmware, driver, estimator, and aircraft.

Decide what redundancy actually covers

Multiple IMUs can address a sensor failure, saturation event, or performance comparison only if selection and fault logic can identify a useful alternative. Count the shared causes before crediting redundancy:

• common power rail or regulator;
• common clock, bus, processor, memory, driver, or estimator software;
• sensors on the same board or isolation mount;
• the same vibration, shock, temperature, contamination, or electromagnetic environment;
• common calibration equipment, procedure, or configuration error;
• identical part susceptibility or production lot;
• a shared connector, enclosure, cooling path, or mounting fastener; and
• selection logic that cannot distinguish which measurement is wrong.

Diverse sensor models can reduce some common design causes while adding unit, filter, range, timing, driver, and calibration differences. Identical sensors can simplify integration while sharing design sensitivities. Neither approach is automatically superior.

Define whether each IMU feeds a separate estimator instance, a voter, a blended measurement, or a primary/standby path. Then test slow bias, noise increase, stuck data, intermittent messages, axis inversion, clipping, timing drift, temperature error, and complete loss. A simple unplug test covers only one failure class.

Redundancy also affects maintenance. A replacement unit must receive the right orientation, calibration, device assignment, estimator association, and acceptance test. If software silently reorders identical devices between starts, the logs and selection logic need stable identities.

Build an evidence-based shortlist

Use pass/fail gates before trade studies. A sensor that misses required range, timing, environment, interface, lifecycle, or evidence should not win by having a lower headline bias number.

Request the actual data behind a compliance statement when the requirement is material. A test-report title, standard name, or “industrial grade” label does not show configuration, severity, axes, duration, sample size, pass criteria, or results.

Separate qualification from acceptance. Qualification shows that a design can meet defined requirements under a controlled configuration. Acceptance shows that a produced unit or lot meets release criteria. Screening may remove early failures but does not replace design qualification.

Also separate prototype availability from production suitability. Evaluation boards can omit the connector, enclosure, power supply, clock, thermal path, mount, and software that shape installed performance.

Verify the selected IMU in the aircraft

NASA's requirements verification matrix guidance recommends linking each requirement to a verification method, level, phase, and result. It is general systems-engineering guidance, not a commercial-UAS certification recipe. Applied here, it prevents a data-sheet review from being mistaken for installed verification.

Progress through increasingly complete evidence:

1. Normalize supplier data. Record exact part, hardware revision, firmware, range and filter setting, axes, units, test conditions, typical versus limit, and unresolved gaps.
2. Build analytical budgets. Allocate noise, bias, scale factor, alignment, timing, vibration, temperature, aiding, and estimator contributions to each required state and mode.
3. Characterize candidate units. Repeat starts, static runs, rotations, accelerations, temperature profiles, supply boundaries, and communications loads using calibrated equipment and retained raw data.
4. Integrate the actual chain. Use the production-intent board, power, connector, clock, driver, estimator, configuration, logging, enclosure, mount, and cable.
5. Exercise the installed environment. Run motors and payloads through representative speeds and states; measure spectra, clipping, aliasing, temperature, magnetic and electrical effects, latency, and estimator innovations.
6. Test faults and transitions. Inject permitted missing, stale, delayed, clipped, biased, noisy, reset, and inconsistent data and verify selection, mode, indication, control, and recovery.
7. Fly with independent truth. Cover representative dynamics, weather, temperature, payload states, aiding changes, and navigation outages within a controlled test plan.
8. Repeat across units and lifecycle. Evaluate production variation, calibration retention, aging, repair, replacement, software updates, and any supplier change.

The separate GNSS-loss analysis explains why “ten seconds of dead reckoning” is not a transferable IMU requirement. Convert the operational containment and duration into an error budget, then verify the complete aided and unaided estimator with the candidate sensor.

Retain the requirements, source data, calculations, scripts, equipment calibration, raw measurements, environmental record, configuration identifiers, discrepancies, and approvals. A plot pasted into a slide without its data, conditions, or configuration is not maintainable evidence.

Common selection mistakes

Buying the lowest bias-instability number

In-run stability is one constant-condition statistic. It does not close range, clipping, noise, turn-on repeatability, temperature, vibration, timing, interface, calibration, or production variation.

Equating sample rate with control performance

The control loop sees the complete amplitude, phase, timestamp, latency, and jitter path. A fast output can carry filtered or stale information and can add processor or bus contention.

Assuming software can filter out vibration

Filtering cannot recover clipped samples or undo aliased energy. Vibration can also create a rectified low-frequency error inside a sensor. Mechanical design, sensor behavior, analog filtering, sampling, digital filtering, and estimator logic must be treated together.

Treating factory calibration as installed alignment

Factory calibration can characterize internal axes and error coefficients. It does not establish the transform from the IMU case through its mount and airframe to a payload optical axis or another vehicle reference.

Counting sensors instead of independent fault coverage

Two or three devices on one board may improve availability for some faults while sharing the cause that matters most in a given hazard. Trace the complete power, clock, compute, software, mount, environment, and selection chain.

Accepting qualification by association

A product-family test, component screening statement, or environmental-standard name does not automatically cover the ordered variant, firmware, configuration, mount, enclosure, aircraft spectrum, or integration.

The procurement data package

For the selected configuration, retain at least:

• requirement and verification matrices;
• exact part, revision, firmware, range, filter, output, and interface settings;
• supplier data sheets, errata, test reports, qualification basis, and change notices;
• serialized calibration coefficients, results, uncertainty, and traceability;
• mechanical drawing, orientation, lever arms, mounting torque, isolation, thermal path, and connector definition;
• electrical schematic, power-quality limits, grounding, EMC evidence, and startup or reset behavior;
• protocol, timing, timestamp, health, diagnostics, driver, and software compatibility records;
• analysis, simulation, bench, environmental, hardware-in-the-loop, ground, flight, and fault-test evidence;
• acceptance, incoming inspection, replacement, repair, and recalibration procedures; and
• unresolved limitations, approved deviations, operating restrictions, and responsible acceptance authority.

This package turns an IMU choice into a maintainable aircraft configuration. It also makes later supplier changes or field anomalies reviewable without relying on the memory of the original integration team.

Frequently asked questions

What IMU grade does a commercial drone need?

There is no universal grade. The needed performance follows from aircraft dynamics, control and navigation states, aiding gaps, pointing or georeferencing needs, environment, failure response, and evidence requirements. Marketing grades do not replace measurable limits and test conditions.

Is a more expensive IMU always better?

No. A higher-performing sensor can add mass, power, heat, cost, integration complexity, range limits, or lifecycle constraints without improving the system's limiting error. The relevant question is whether the complete configuration meets its allocated requirements with maintainable evidence.

How much gyro range should a multirotor have?

Derive it from measured and modeled body rates plus credible disturbance, fault, landing, vibration, and test cases, then add justified margin. A generic range value can either clip real events or sacrifice useful performance in a specific sensor design.

Can a better IMU replace GNSS or another aiding sensor?

It can reduce the rate at which some inertial errors grow, but unaided position and velocity still drift. Whether it can bridge a required gap depends on the complete error budget, initialization, motion, estimator, other observations, and operational containment.
