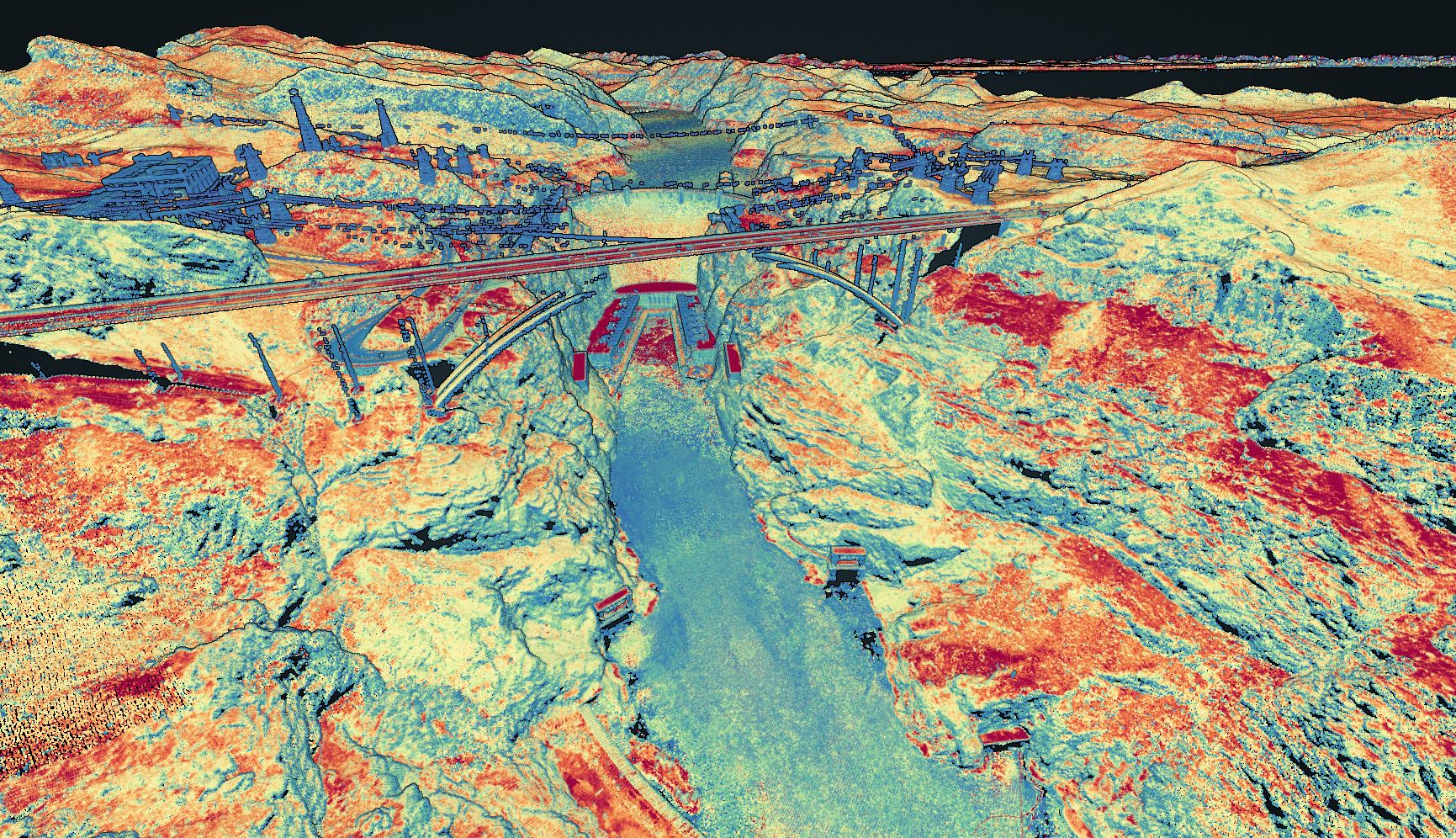

Range at the target
Detection range is the distance along the laser beam, not automatically the
aircraft's usable height above ground. Read the reflectivity, illumination,
incidence angle, and target-size conditions beside the number.
For example,
DJI's Zenmuse L2 specifications
give a typical detection range of 450 m at 50% reflectivity in darkness, versus
250 m at 10% reflectivity under 100 klx illumination. Those are different test
conditions, not two interchangeable operating altitudes. DJI also states that
splitting a pulse across multiple targets reduces achievable range.
The same distinction appears in
RIEGL's miniVUX-3UAV data:
in its 100 kHz mode, listed maximum range changes from 170 m at reflectivity of
at least 20% to 330 m at at least 80%. These examples explain how to read a
specification; they do not establish a winner between systems.
Allow for slant range and terrain
Consider an illustrative flight 100 m above a flat, horizontal surface with the
outer accepted beam 35 degrees from vertical. Basic geometry gives:
Slant range = height / cos(scan angle) = 100 m / cos(35°) ≈ 122 m.
Full ground swath = 2 × height × tan(scan angle) = 2 × 100 m × tan(35°) ≈ 140 m.
These are geometric calculations, not a flight recommendation or a prediction of
usable coverage. A depression increases the target distance; a hillside changes
incidence and visibility. Ask for a mission plan showing the range to the most
difficult surface, including the edges of each retained swath.
Beam divergence matters too: the illuminated footprint grows with distance. Ask
the supplier to give footprint dimensions at your intended range and identify
the measurement convention. A small object's visibility needs a representative
sample, even when the ground is comfortably within rated range.
Returns and useful point density
A return is an echo detected from a pulse. A footprint that encounters
vegetation at different depths can produce several returns, but the advertised
maximum is a capability ceiling. It does not promise that every shot reaches the
ground or produces that many usable measurements.
Keep three counts separate: emitted pulses, recorded returns, and retained
points on the surface you need. DJI lists up to 240,000 points per second in
single-return mode and 1.2 million in multiple-return mode for the L2, with up
to five returns. The larger number does not describe five times as many
independently illuminated ground locations.
The
USGS collection requirements
illustrate why definitions matter: pulse-density assessment uses first-return
data, and the specification separately addresses voids, spatial regularity, and
adequate ground penetration. It prefers leaf-off conditions. These are
requirements for 3DEP collections, not universal settings for every drone
project.
For wooded terrain, request a ground-classified density map and cross-sections
through representative understory. An all-return average may be impressive while
the surface needed for a drainage model remains sparsely measured. Ask what
portion of the terrain is interpolated across gaps and whether a different
season or supplementary ground survey is needed.
A simple density estimate, with explicit limits
For preliminary sizing, assume 100,000 usable single-return measurements per
second distributed uniformly over a 100 m swath at 10 m/s:
Nominal density = 100,000 / (100 × 10) = 100 points/m².
Doubling speed to 20 m/s halves that arithmetic estimate to 50 points/m². This
calculation assumes flat ground, uniform scanning, no overlap, no occlusion, and
no rejected measurements. It is not a prediction of ground density beneath
vegetation. Use the supplier's actual scan pattern and a measured density map to
judge the mission.
Accuracy of the whole system
Ask what an accuracy number measures before comparing it. Ranging accuracy
concerns the distance measurement. Internal consistency concerns agreement
within and between flight strips. Absolute accuracy concerns how well the
delivered coordinates agree with independent reference measurements. Require the
statistic as well as the number: root mean square error, standard deviation, and
maximum error describe different things.
DJI illustrates the distinction by listing L2 ranging accuracy of 2 cm at 150 m
under an 80%-reflectivity, 25°C test, separately from its system-accuracy
values. Do not promote a scanner's ranging result into a guaranteed map
accuracy.
Orientation is especially important as range increases. In an illustrative
single-axis case, an uncorrected angular error of 0.02 degrees at 100 m produces
approximately:
Transverse displacement = 100 m × tan(0.02°) ≈ 0.035 m, or 3.5 cm.
That is one geometric contribution, not a total error budget. Its direction
depends on the viewing geometry. Position error, calibration, timing, and
processing still need separate consideration; adding published accuracy numbers
without a consistent statistical model is not a sound system estimate.
Boresight calibration estimates the angular alignment between the laser
scanner and the inertial measurement unit, or IMU.
Applanix's technical description
explains that uncorrected misalignment degrades the point cloud and
distinguishes boresight correction from adjustment of the
position-and-orientation trajectory. Ask who performs calibration and what
changes require it to be repeated.
For an acceptance survey, keep checkpoints independent of the points used to fit
or calibrate the data.
USGS processing requirements
separate those roles and assess vegetated and nonvegetated accuracy. Require
results for your relevant land cover, the point cloud, and the final terrain
product. Agree on horizontal and vertical limits separately, along with units,
checkpoint distribution, and treatment of survey uncertainty. A hard-ground
result alone does not establish accuracy beneath the canopy.
A smooth-looking surface and well-matched strips are useful checks, but an
independent coordinate comparison answers a different question. Our explanation
of
GNSS-aided inertial navigation
provides the background for evaluating the trajectory behind those coordinates.
Aircraft and processing integration
Establish whether the proposal is for a bare scanner or a complete mapping
payload. RIEGL, for example, distinguishes its standalone scanner from
integrated IMU/GNSS and camera solutions. A scanner-only mass or price cannot
describe the installed system.
Request an installation drawing and a complete configuration list covering the
mount, isolation hardware, cables, positioning antennas, recorder, and any
camera. Have the integrator confirm payload limits, center of gravity,
clearance, power requirements, and endurance for that configuration. A connector
that fits is only one part of compatibility.
The data interface deserves equal attention. Record the scanner-to-IMU
alignment, measured sensor offsets, timestamp conventions, synchronization
method, and where the calibration values are stored. Establish who owns those
values when a payload moves between aircraft. Use the
drone payload integration checklist
to close the wider interface questions before flight.
Demonstrate the entire processing path with the proposed equipment and software
versions: ingest raw observations, solve the trajectory, generate the cloud,
align strips, classify points, and export the required product. Ask which steps
need a base station, correction service, internet access, paid module, or manual
intervention. Test the final export in the software your team actually uses.
For a site with unreliable satellite reception, require a demonstration in that
environment. Applanix describes trajectory-adjustment tools that use overlapping
LiDAR observations, but that capability does not establish the accuracy of an
untested configuration at your site.
Specify the delivered data
Start with the recipient's task. A point-cloud visualization, a bare-earth
digital elevation model, and a classified infrastructure dataset are different
deliverables. NOAA also distinguishes near-infrared topographic LiDAR from
green-light bathymetric systems; a land-mapping payload should not be assumed to
measure a submerged riverbed.
The table below is an editorial commissioning checklist informed by the
USGS deliverables specification,
2025 rev. A. Adapt it to the project; it is not a claim that a drone payload is
3DEP compliant.
Scroll horizontally to compare all columns.
USGS requires more than a point cloud, including supporting reports and a
bare-earth raster for its applicable projects. For a commercial job, settle the
deliverable list before comparing quotes. In particular, have the receiving
engineer or GIS team confirm the horizontal and vertical reference systems and
units before collection. “Georeferenced” alone is too vague to describe the
required handover.
Compare lifecycle cost per accepted job
Build the cost model around the same deliverable and acceptance process for each
candidate. Include installed hardware and integration, recurring software and
correction services, training, calibration, maintenance, storage, processing
labor, field labor, and expected rework. Ask the supplier to identify exclusions
and renewal terms in writing.
One useful internal planning formula is:
Cost per accepted job = (installed acquisition cost − assumed residual value +
fixed operating costs over the evaluation period) / accepted jobs + variable
cost per accepted job.
For illustration only, assume a net capital cost of
$60,000, three years of fixed costs totaling $18,000, and
$500 in variable cost per accepted job. At 60 accepted jobs over those three years, the result is ($60,000 +
$18,000) / 60 + $500 =
$1,800 per job. At 30 accepted jobs over the same period, it becomes $3,100.
These are hypothetical budgeting inputs for demonstrating the calculation, not
equipment prices, market averages, or quoted service rates.
Enter your own quotes and staffing assumptions. Include reflight and
processing-rework costs in the variable allowance, and count only jobs that meet
the agreed deliverable requirements in the denominator. For the same completed
jobs, avoid counting the same labor in both fixed and variable costs.
For irregular demand, compare that ownership scenario with renting or
commissioning equivalent deliverables. For recurring work, run a representative
job through your own team and record actual field and processing effort before
relying on a utilization forecast. Also ask what happens to data access and
reprocessing when a software subscription ends.
What to ask for before choosing
Send each shortlisted supplier the same representative site and output
specification. Ask for:
- The proposed flight settings: height, speed, scan mode, return mode,
overlap, and the assumptions behind usable range.
- A complete sample delivery: raw and processed data as agreed, rather than
only a screen recording of a point cloud.
- Separate quality results: useful-surface density and gaps, strip
agreement, and independent horizontal and vertical accuracy checks.
- The installed configuration: aircraft, payload components, calibration,
firmware, processing software, and dependencies.
- The cost and responsibility split: who performs classification, confirms
quality, repairs poor coverage, and pays for repeat work.
For vegetation-heavy terrain, prioritize demonstrated ground coverage. For
narrow infrastructure features, prioritize sample geometry and visibility at the
intended range. For repeated mapping, prioritize checked coordinates and
reproducible processing. Choose the complete system that meets those
requirements at a supportable cost; an isolated maximum specification is
insufficient grounds for the purchase.
Source notes
- NOAA: What is lidar?
Government explanation of airborne measurement, point clouds, and topographic
versus bathymetric LiDAR.
- DJI: Zenmuse L2 specifications
Manufacturer values and test conditions for detection range, return rate, and
ranging accuracy.
- RIEGL: miniVUX-3UAV
Manufacturer specifications illustrating reflectivity-dependent range and
standalone versus integrated configurations.
- USGS: Lidar Base Specification, Collection Requirements
3DEP collection requirements for returns, pulse density, voids, and vegetation
conditions, 2025 rev. A.
- USGS: Lidar Base Specification, Data Processing and Handling Requirements
3DEP requirements for independent checkpoints, accuracy assessment, and
spatial reference information, 2025 rev. A.
- Applanix: Lidar QC Tools
Manufacturer explanation of boresight calibration and trajectory adjustment;
not independent proof of performance.
- USGS: Lidar Base Specification, Deliverables
Required 3DEP data products, quality documentation, and processing metadata,
2025 rev. A.
Last checked: September 7, 2026.
