Industrial Drones: Platform Features That Matter

On This Page

• Define the job before choosing the platform
• Check what payload integration actually includes
• Separate mission endurance from maximum flight time
• Judge accuracy at the delivered output
• Prove the data handoff and software fit
• Count ownership costs through retirement
• Make the demonstration match the purchase

Define the job before choosing the platform

Write a short mission description that names the subject, required observation, operating conditions, and receiving team. “Inspect structures” leaves too much open. A useful version would specify which faces of a structure need images, the smallest feature an inspector must resolve, the available viewing distances, and how each image will be tied to a component.

For mapping, identify the required surface or imagery product, coverage, coordinate system, and accuracy checks. For recurring inspections, specify how the team will find the same component on subsequent visits. These requirements determine whether an aircraft's camera positioning, payload interfaces, and repeat-flight functions are useful.

Use the following matrix to turn feature lists into questions. These are procurement recommendations synthesized from the manufacturer, mapping, and test-method documentation cited below, rather than universal pass limits.

Make these mandatory requirements before assigning preference scores. A platform that cannot capture the necessary viewpoint or deliver a usable file should not win because it has more optional features.

Check what payload integration actually includes

Payload capacity is only one part of compatibility. Require a configuration record covering the mount, installed mass, balance limits, power supply, data connection, operator controls, capture triggering, and supported software versions. Include cables and adapters in the installed configuration.

The DJI Matrice 350 RTK specification separates maximum takeoff weight from the single gimbal damper's payload limit. It also limits third-party support to certified DJI Payload SDK devices. Do not treat an aircraft weight allowance as a mount rating. Check the configuration limits for the proposed installation.

Integration also has a timing dimension. A sensor observation needs to be associated with the aircraft state at capture, rather than merely the time a file reaches the controller. DJI's Payload SDK time-synchronization documentation describes synchronizing supported payloads and aircraft through pulse-per-second signals and converting payload time to aircraft time. Its implementation has hardware and model-specific requirements. This illustrates why “has an SDK” is insufficient evidence of a completed sensor integration.

Ask the integrator to capture a sample, retrieve the original file, and explain the timestamp and position fields. Then repeat after a restart and with the proposed mission software. Record which functions are supported directly, which require custom development, and who maintains that code after firmware changes.

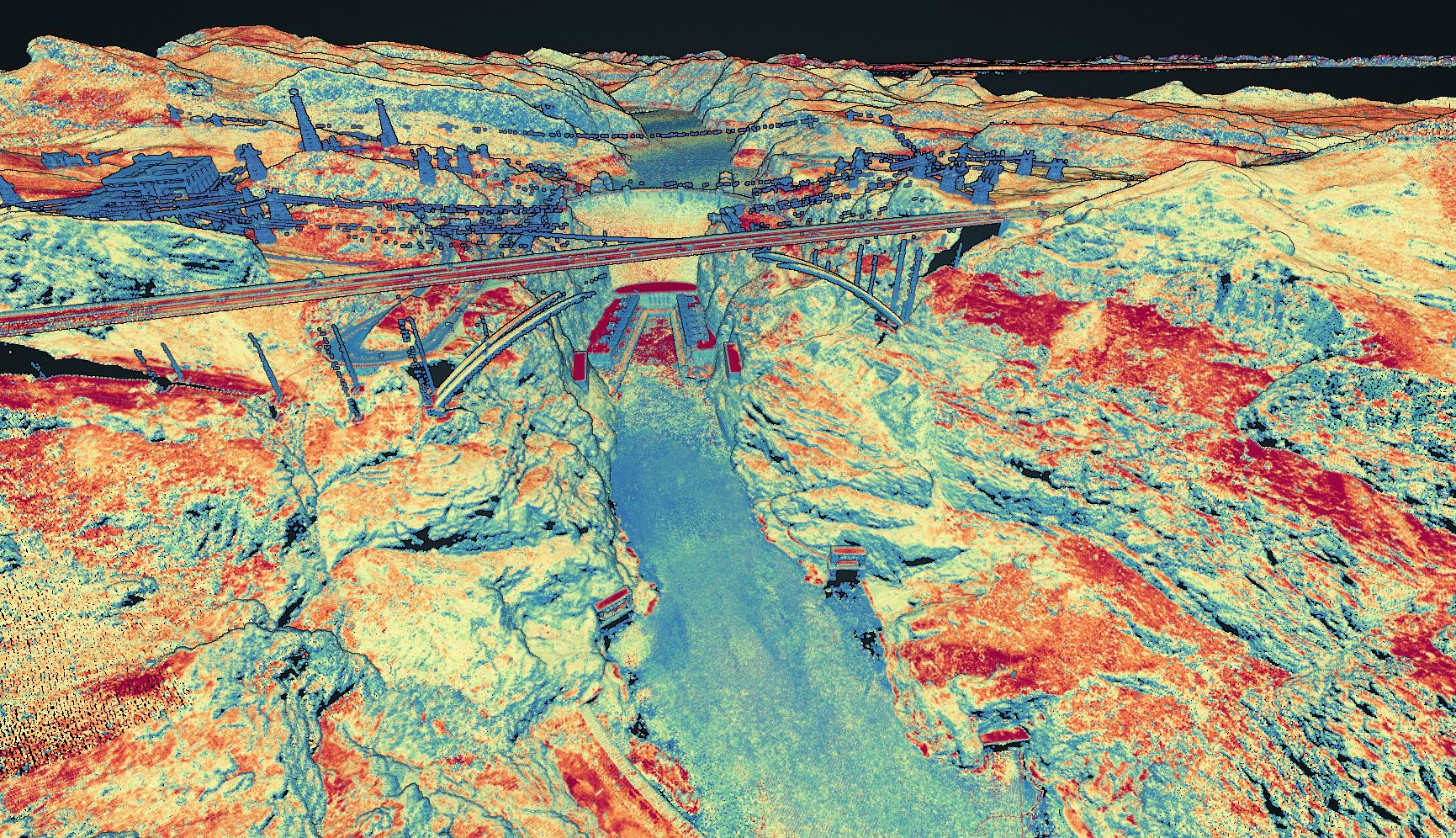

For laser mapping, the separate drone LiDAR payload selection guide covers sensor range, returns, and accuracy. Here, the aircraft purchase question is whether the complete sensor installation and processing chain have been demonstrated together.

Separate mission endurance from maximum flight time

Compare aircraft using the payload and flight pattern you expect to use. DJI's 55-minute maximum for the Matrice 350 RTK was measured at approximately 8 m/s, without payload, in windless conditions, down to zero battery. Actual time varies with accessories, flight mode, and environment. Build the working mission budget around the loaded configuration and a planned landing reserve.

Request a mission record separating setup, transit, useful capture, recovery, and turnaround. For work that requires repeated close views, a long transit-oriented endurance figure does not answer how much usable evidence the crew will capture in a shift. Ask for the battery state at landing and the operating reserve used, rather than comparing two logs with different stopping rules.

Turnaround includes charging, cooling where required, data transfer, and crew checks. Have the supplier demonstrate the proposed battery rotation using the power supply available at your site. A charging station's presence in the equipment list does not establish continuous operation.

Environmental ratings need the same care. DJI lists IP55 for the Matrice 350 RTK aircraft and IP54 for its controller, with aircraft protection potentially decreasing through wear. Check the payload and accessories separately; the aircraft rating does not cover the entire working system.

For communications and navigation failures, ask what the actual configuration does when control, video, correction data, or a required network service becomes unavailable. Review the documented recovery behavior and operator indications. Use manufacturer-supported simulation or controlled demonstrations; do not improvise an airborne failure to test a sales claim.

Judge accuracy at the delivered output

Real-time kinematic positioning, usually called RTK, can improve image geolocation. It does not, by itself, establish the accuracy of a finished map or model. PIX4D distinguishes relative accuracy, such as the distance between features within a model, from absolute accuracy, their positions in a reference system. Reconstruction also depends on image quality and overlap. Its mapping-accuracy guidance recommends checkpoints to assess final absolute accuracy.

Require the supplier to name the quantity being claimed. Is it aircraft positioning, image geolocation, horizontal map accuracy, vertical surface accuracy, or repeatability between visits? Ask for checks on the delivered product and an explanation of where those checks represent the site. A processing screenshot without its reference data leaves that question unanswered.

For detailed procurement requirements, use the drone survey accuracy guide. Keep the aircraft decision focused on whether the positioning, sensor, capture method, and processing configuration support the required checks.

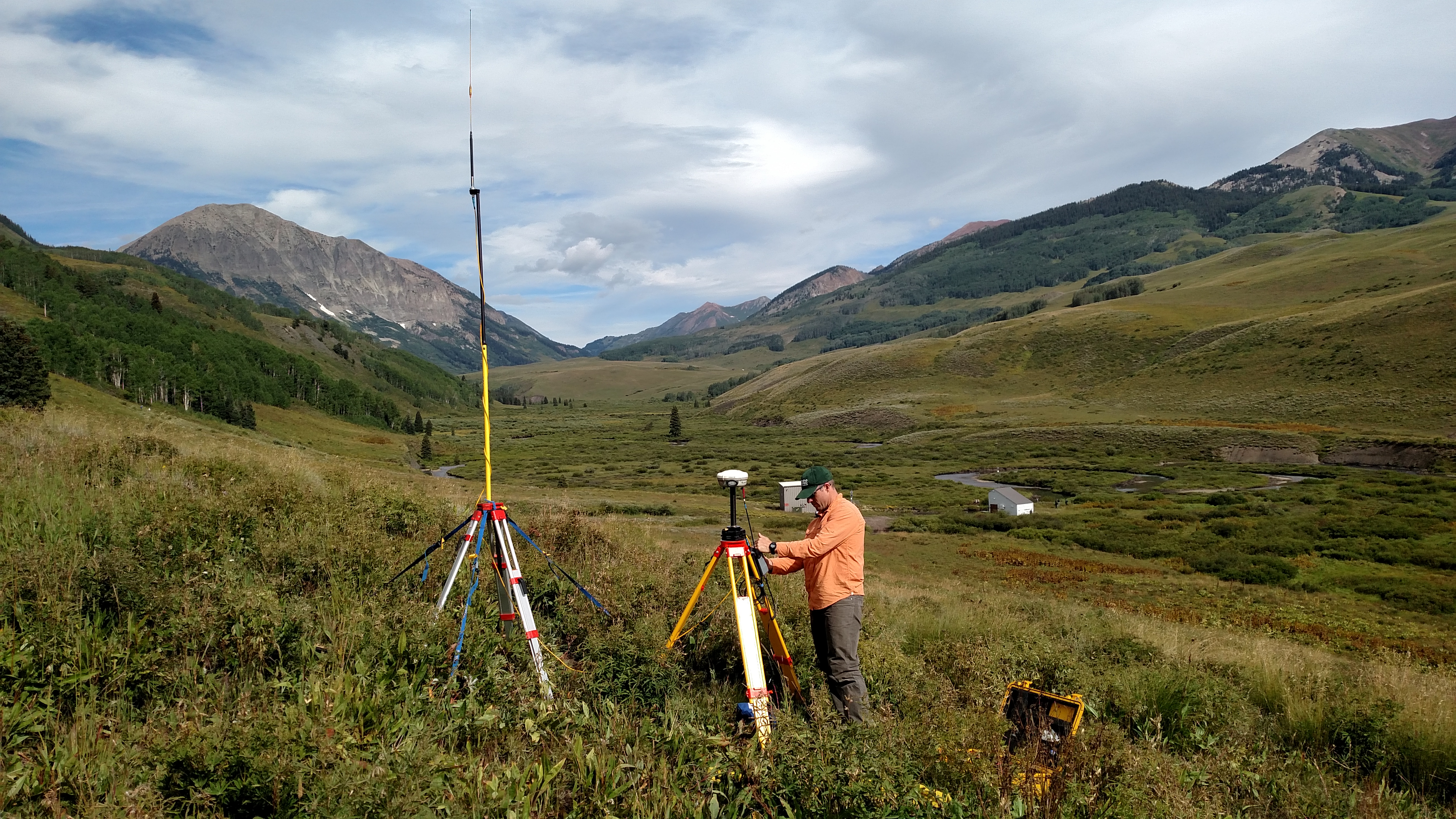

Coordinate definitions are part of the deliverable. The USGS lidar processing requirements call for agreed coordinate reference systems and documented horizontal and vertical definitions. That specification governs its stated program; it is a useful model for commercial handover questions, not an automatic requirement for every drone job.

For an inspection purchase, replace a vague image-quality promise with a representative subject and a required interpretation. Can the receiving inspector identify the relevant feature in the delivered original at the intended viewing distance? Have the specialist define the necessary detail and uncertainty before the demonstration.

Prove the data handoff and software fit

Ask for a small delivery in the tools your team already uses. Include original captures, a structured record tying evidence to the asset, required processed outputs, and the information needed to interpret them. For spatial data, verify coordinates and units against a known project reference.

Export labels can conceal meaningful differences. Esri's Site Scan export documentation distinguishes a PNG orthomosaic preview for presentation from a TIFF for raster analysis. It also describes LAS and compressed LAZ point clouds and tells users to check LAZ support in the receiving software. Opening a preview is not the same task as using the analysis dataset.

For repeat inspections, preserve asset and component IDs, capture dates, original-file references, reviewer decisions, and missing-coverage notes. The drone inspection software guide explains the handoff from findings to maintenance in more detail.

Check software compatibility at the function level. DJI's FlightHub 2 FAQ lists supported DJI equipment but states that drones from other manufacturers cannot connect. A fleet-management label therefore should not be read as a mixed-fleet compatibility claim. Require the proposed service tier and exact supported functions in writing.

Have your IT team settle access roles, data location, network dependencies, retention, and export permissions before deployment. Demonstrate how a failed upload is recognized and retried and how a complete archive is retrieved. If a feature requires a cloud connection, specify what the crew can still do when that connection is absent.

Count ownership costs through retirement

Compare proposals over the same ownership period, mission volume, and deliverable requirements. Include the aircraft and payload, integration, training, batteries, maintenance, software, processing labor, storage, and eventual data migration. Ask which quoted items overlap so bundled services are not counted twice.

An editorial budgeting formula is:

Lifecycle cost = acquisition and integration + training and setup + operating labor + maintenance and consumables + software and data services + rework and downtime provision + retirement and migration costs − recoverable residual value.

Populate that formula with quotes and your own operating assumptions. It is a cost checklist, not a market-price estimate. Treat residual value and downtime as uncertain inputs rather than guaranteed credits or losses.

Also compare lifecycle cost per accepted deliverable: total relevant cost divided by the number of deliverables that meet the agreed requirements. Define that unit consistently, such as a complete site survey or a reviewed asset inspection. Counting flights alone can hide incomplete coverage and repeat visits.

Subscription boundaries deserve explicit questions. The FlightHub 2 FAQ says expired storage resources prevent adding new data while existing data remains accessible. It separately describes limits on service resources. Ask what expires, what remains readable, what remains exportable, and what additional processing requires payment. Do not generalize one provider's retention policy to another.

Obtain dated support commitments for the proposed equipment and software. Include repair arrangements, replacement components, payload recalibration where applicable, and responsibility for maintaining custom integrations. The useful service life ends when a required part of the working chain can no longer be supported, even if the aircraft still flies.

Make the demonstration match the purchase

Choose a representative task and agree what a successful delivery looks like before the demonstration. Use the proposed aircraft, payload, software, crew arrangement, and receiving application. Record deviations from the proposed setup so a demonstration with different equipment does not become an assumed capability.

NIST's description of aerial response-robot test methods explains how repeatable maneuvers and observation tasks measure aircraft capability together with pilot proficiency. Apply that principle to your own trial: repeat the relevant task, retain the resulting files, and judge performance against the agreed job. A demonstration is not a certification or proof of reliability in every environment.

Before accepting the platform, require answers to four questions:

1. Did the exact configuration collect every required view or measurement under representative conditions?
2. Did the final files meet the agreed checks and open correctly in the receiving system?
3. Are recovery behavior, operational limits, and unresolved dependencies documented?
4. Does the ownership estimate include the people, services, and support needed to repeat the result?

Hold a purchase for clarification when a required answer depends only on a brochure maximum, a future integration, or an untested export. Select the configuration that demonstrates the required work and leaves your team able to use, maintain, and retrieve its outputs.

Source notes

• DJI: Matrice 350 RTK specifications. Manufacturer documentation for payload distinctions, endurance test conditions, and component environmental ratings.
• DJI: Payload SDK time synchronization. Developer documentation illustrating capture-time integration and hardware dependencies.
• PIX4D: Relative and absolute accuracy of drone mapping. Technical guidance on positioning, reconstruction, and checkpoint assessment.
• USGS: Lidar data processing and handling requirements. Program specification, 2025 rev. A, used for coordinate-system handover requirements.
• Esri: Export ortho, point cloud, and mesh. Software documentation distinguishing presentation and analysis files and downstream format support.
• DJI: FlightHub 2 FAQ. Provider documentation for fleet compatibility, service resources, and storage-expiry behavior.
• NIST: Performance tests for aerial response robots. Institutional explanation of repeatable aircraft-and-pilot capability tests; used for demonstration principles, not a current certification claim.

Last checked: September 9, 2026.
