Drone Survey Accuracy Standards: What Buyers Should Ask For

On This Page

• Separate resolution from positional accuracy
• Name the standard and the reporting metric
• Ask for independent checks of the delivered data
• Match the survey to the decision
• Specify files your team can actually use
• Compare the cost of accepted deliverables
• Put the accuracy promise into the purchase specification

Separate resolution from positional accuracy

Ground sampling distance (GSD) is the ground distance between adjacent image-pixel centers. A GSD of 2 cm means neighboring pixel centers represent locations roughly 2 cm apart under the stated capture geometry. It does not mean every mapped feature is within 2 cm of its true position. Flight height above the subject, sensor dimensions, and focal length determine nominal GSD. Terrain height changes can change it across a flight. See PIX4D's GSD explanation.

Relative accuracy concerns relationships within the model, such as the distance between two features. Absolute accuracy concerns their positions in a specified reference frame. A model can preserve local distances while sitting in the wrong place relative to another survey. PIX4D distinguishes these measures and explains that image quality, overlap, and georeferencing all affect the result. Its indicative accuracy ranges are conditional, rather than a certificate for a particular job. PIX4D: relative and absolute accuracy.

Real-time kinematic (RTK) and post-processed kinematic (PPK) positioning can improve image geolocation. They do not, by themselves, demonstrate the accuracy of the reconstructed surface or exported orthomosaic. Ask which part of the system a quoted figure describes: receiver positioning, image geolocation, model geometry, or final map coordinates.

The same distinction matters beyond mapping. Our guide to what drone inspection evidence can establish explains why collecting a clear image and supporting a measurement claim are different tasks.

Name the standard and the reporting metric

The American Society for Photogrammetry and Remote Sensing adopted Positional Accuracy Standards for Digital Geospatial Data, Edition 2, Version 2 (2024), with addenda covering photogrammetry, lidar, and UAS mapping. Its adoption notice identifies three changes buyers should recognize: accuracy reporting no longer uses the former 95% confidence-level measure, checkpoint survey uncertainty must enter the final accuracy calculation, and the minimum checkpoint count for product accuracy assessment increased from 20 to 30. ASPRS adoption notice.

Request the exact edition, target accuracy class, achieved result, and number of checkpoints. If a supplier proposes fewer than 30, have it identify the reporting qualification and project agreement that apply. Do not treat a small checkpoint sample as an unqualified demonstration that the minimum was met. An old report may use a different standard legitimately; its number needs interpretation before comparison with a new proposal.

Root mean square error (RMSE) summarizes coordinate differences by squaring them, averaging the squares, and taking the square root. Squaring prevents positive and negative errors from canceling. It is not the largest error in the dataset. USGS describes horizontal RMSE, written RMSE H, and vertical RMSE, written RMSE V, and shows how checkpoint survey error enters the vertical result. USGS explanation of the revised accuracy measures.

For example, suppose the vertical residual RMSE against checkpoints is 4 cm and checkpoint survey RMSE is 2 cm. Using the USGS expression, final vertical RMSE = square root of (4² + 2²) = 4.47 cm, approximately 4.5 cm. These are illustrative inputs, not measured drone performance. The example shows why a processing report's 4 cm residual should not automatically become the final accuracy claim.

Also request individual residuals, mean signed error, and the largest discrepancies. A 5 cm RMSE limit is not a promise that every point lies within 5 cm. If your design needs a separate limit at a critical feature, specify that check explicitly.

Ask for independent checks of the delivered data

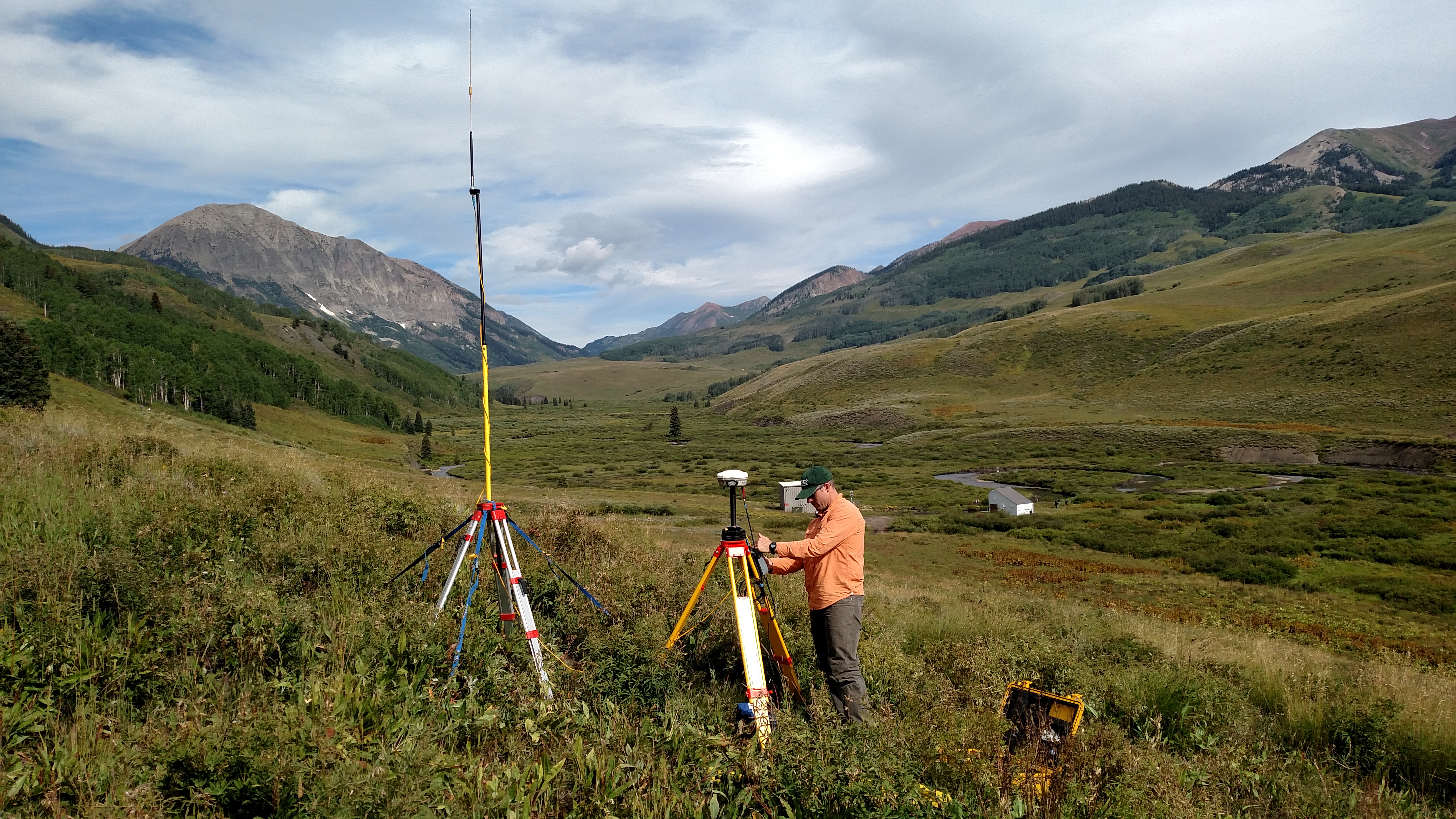

Ground control points help place and constrain a photogrammetric model. Checkpoints provide a separate comparison with known coordinates. PIX4D documents these different roles in its guide to control points and checkpoints. For procurement, require the supplier to explain which surveyed coordinates were withheld from the adjustment and which were used to influence it.

A useful report should let you trace each check to the delivered file. Request point identifiers, reference and extracted coordinates, coordinate differences, survey method and uncertainty, a location map, and an explanation of any excluded observations. Ask whether the statistics describe the final terrain model, orthomosaic, point cloud, or an intermediate processing stage. A later export or transformation should remain traceable to the tested version.

Coverage matters too. Have the supplier justify how the check locations represent the footprint, elevation range, and relevant surfaces. Convenient checks beside the launch site do not answer every question about a long corridor or steep terrain. Where access prevents checks, request a mapped limitation and an agreed alternative, rather than an unexplained whole-site claim.

USGS calibration guidance treats flight configuration, camera calibration, ground-control distribution, and quality verification as interdependent. That is why a proposal should describe how the supplier will manage the actual site, including terrain variation and image geometry. A quoted aircraft specification leaves these steps unanswered. USGS guidelines for calibration of UAS imagery.

Match the survey to the decision

Use the following questions to turn a generic accuracy promise into a project-specific request. These are editorial procurement recommendations informed by the accuracy distinctions and USGS delivery guidance, not standard-mandated tolerances.

For a bare-earth deliverable, ask how vegetation and gaps will be handled and how ground observations will be distinguished from inferred surface areas. A dense point cloud alone does not answer whether the ground needed for your decision was measured. The USGS lidar specification separately calls for classified points, a bare-earth model, supporting metadata, and applicable breaklines. USGS lidar deliverables.

Avoid selecting one universal centimeter target for all four uses. Have the receiving engineer or data owner set tolerances for the actual decision. For quantities, agree the volume method as well as positional accuracy; for change monitoring, agree what difference will count as distinguishable from survey error.

Specify files your team can actually use

Before collection, agree the horizontal coordinate reference system, vertical datum, geoid model where used, units, and any local-grid transformation. “GPS coordinates” is insufficient. An ellipsoidal height and a height referenced to a gravity-based vertical datum are different quantities, even when both are labeled meters.

The USGS Lidar Base Specification 2025 rev. A requires an agreed coordinate reference system for lidar and related products, with horizontal and vertical definitions documented. It also requires the geoid model to be identified and distinguishes international feet from U.S. survey feet. These are useful handover questions for commercial surveys, although the USGS program specification is not automatically the specification for every drone job. USGS data processing and handling requirements.

Request a small sample delivery before choosing a supplier. Open it in the GIS or CAD application your team actually uses, alongside an existing project reference. Check horizontal position, a known elevation, units, layer names, and whether required attributes survive import.

Agree the following file package, adapting it to the work:

• A georeferenced orthomosaic if imagery is required, with pixel size and coverage documented.
• The requested elevation surface, stating whether it represents bare terrain or includes above-ground objects, with cell size and gap treatment recorded.
• A classified point cloud when downstream filtering or reprocessing matters, with the agreed LAS/LAZ version and classes.
• Required breaklines or CAD/GIS features in formats the receiving team can import.
• The accuracy report, survey-point data, collection date, processing information, and coordinate-system definitions.

USGS's deliverables specification provides a concrete example of this separation between data and supporting records. For your own contract, also settle access to original imagery, positioning logs, and processing projects when future reprocessing is part of the intended use. A browser viewer is helpful for collaboration; verify that the required downloadable files are included in the quoted scope.

Compare the cost of accepted deliverables

Compare proposals against the same survey boundary, accuracy requirement, check plan, and file package. A low collection fee can cover a different service from a quote that includes surveyed reference points, manual surface cleanup, and import support.

For budgeting, use a scope model rather than an unsupported price per acre:

Total project cost = mobilization and access + control and checkpoint survey + capture + processing and classification + accuracy reporting + integration and handover + agreed storage or access fees + separately chargeable rework.

This is an editorial cost checklist, not a market-price estimate. Avoid double-counting items already bundled into a quote. For an owned system, add the appropriate share of equipment, software, training, maintenance, calibration, and staff time. For recurring service, ask which reference points can be reused, who verifies their stability, and what triggers new fieldwork.

Clarify who pays when the delivery misses the contracted requirement. Distinguish correction of supplier errors from a buyer-requested scope change. Put file retention, later export charges, software-access expiry, and any remobilization conditions into the comparison before awarding the work.

Put the accuracy promise into the purchase specification

Ask each bidder to return one concise schedule: the intended use, deliverables, accuracy metrics and limits, standard edition, checkpoint plan, reference system, report contents, excluded areas, and remedy for a failed delivery. Require a representative sample report and a sample file that your receiving team can open.

Hold a proposal for clarification if it offers only GSD, RTK positioning precision, a processing screenshot, or an unexplained “survey grade” label. Choose the supplier whose scope connects the promised accuracy to the files and decisions you will actually use.

Source notes

• PIX4D: Ground sampling distance in photogrammetry. Technical documentation defining GSD and its capture-geometry inputs.
• PIX4D: Relative and absolute accuracy of drone mapping. Technical documentation distinguishing accuracy measures and reconstruction limitations.
• ASPRS: Adoption of Edition 2, Version 2 (2024). Standards-body notice identifying the edition and major reporting changes.
• USGS: Adopt updated accuracy standards. Government explanation of revised reporting measures and checkpoint survey-error calculations.
• PIX4D: Tie points in a photogrammetry project. Software documentation explaining control-point and checkpoint roles.
• USGS: Guidelines for Calibration of Uncrewed Aircraft Systems Imagery. Technical report, 2023-1033, supporting the discussion of flight geometry, calibration, and verification.
• USGS Lidar Base Specification: Deliverables. Program requirements, 2025 rev. A, used as a handover example rather than a universal commercial specification.
• USGS Lidar Base Specification: Data Processing and Handling Requirements. Program requirements, 2025 rev. A, for reference systems, units, and data handling.

Last checked: September 7, 2026.
