UAS Command-and-Control Interfaces: What Integrators Must Define

A practical interface-control and acceptance framework for UAS command, telemetry, networking, security, failover, logging, updates, and ground-control integration.

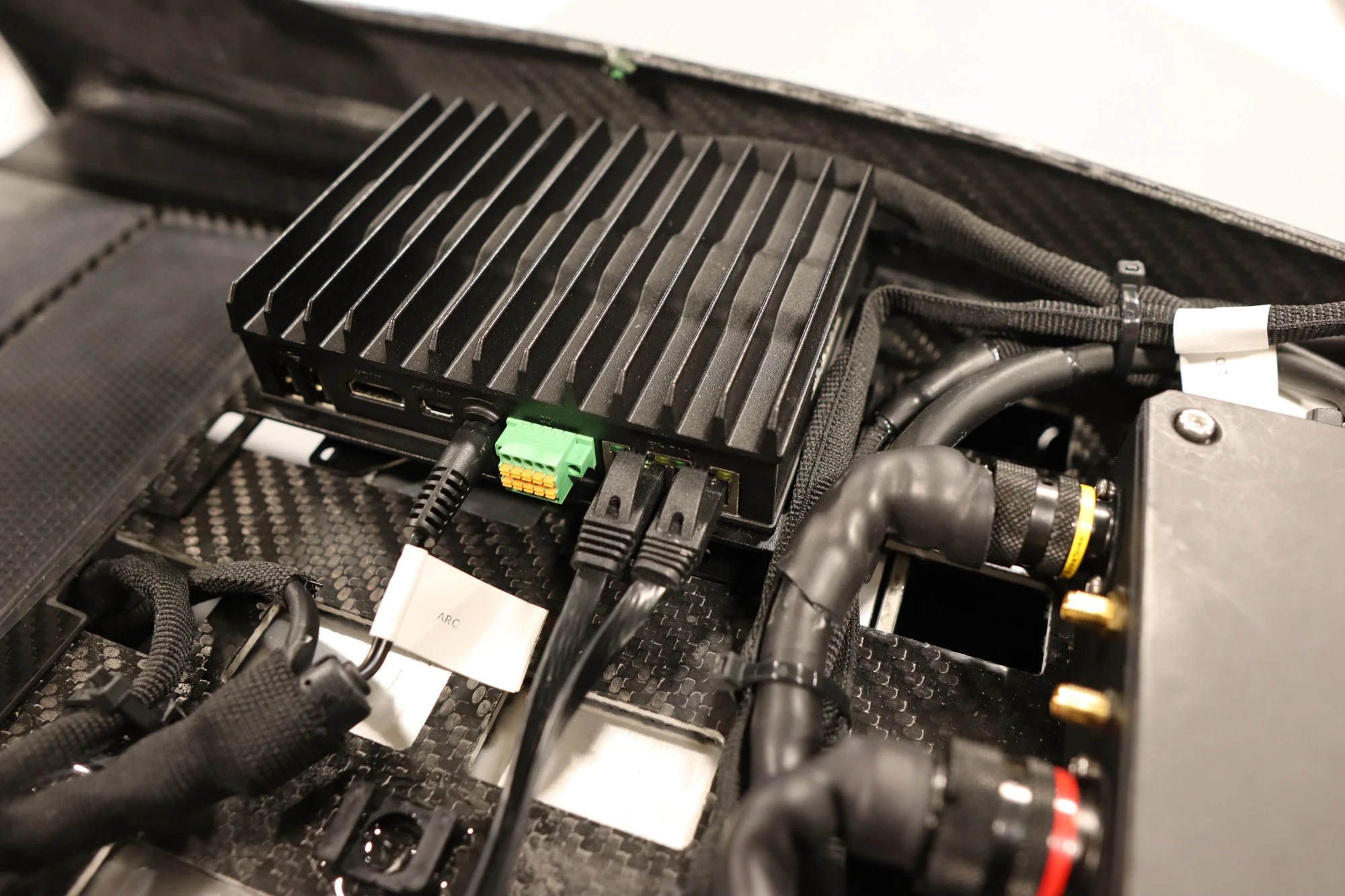

Avidron ARC onboard computer and connected cabling installed inside an aircraft.
Avidron ARC onboard compute hardware and interfaces in an aircraft installation. Photo: Avidron UAS

A UAS command-and-control interface must define far more than a connector and protocol. Integrators need a controlled, end-to-end agreement for authority, message semantics, addressing, timing, security, health, failover, logging, updates, and operator presentation, plus pass/fail verification at each boundary. If any of those remain implicit, compatible components can still produce stale commands, conflicting control, silent loss, or unrecoverable maintenance states.

This article provides an integration framework, not a universal aviation standard. It treats C2 as the consequential exchange used to direct and monitor the aircraft, distinct from bulk payload data. The UAS data-link roles guide defines those roles, while the drone bandwidth guide sizes their traffic.

Control the complete interface, not only the connector

An interface control document, or ICD, should describe every boundary from the operator to the controlled function. A useful first diagram is deliberately plain:

operator -> GCS -> ground gateway -> network provider -> airborne gateway
         -> onboard computer -> flight controller or payload controller

Power, time, identity, configuration, security, and logging cross several of those boxes. A supplier that owns one box may not own the end-to-end behavior. Name the party responsible for each boundary, the party responsible for system acceptance, and the evidence each party must deliver.

NASA's interface-management guidance describes interface definition, control, verification, and change management as an ongoing systems-engineering activity. That is the useful model here. A pinout issued at preliminary design is not a finished interface if the command state machine, network policy, or software version can later change independently.

The ICD should point to controlled artifacts rather than restating them informally. Those artifacts normally include electrical drawings, connector and cable specifications, a data dictionary or interface description language, network rules, security and key-management plans, software compatibility matrices, and verification procedures. Give each artifact an owner, revision, approval state, and applicable hardware and software versions.

Define authority before defining messages

The system must know who may command what. Identify every possible command source: pilot controls, ground-control software, mission software, an onboard automation function, a maintenance terminal, and any alternate control station. For each mode, define which source has authority, how authority transfers, what interlocks apply, and how the operator sees the current state.

Do not use network reachability as authorization. A connected application is not automatically permitted to arm, change a route, control a payload, or alter link configuration. Document identity, role, permitted command set, operating mode, and any required human confirmation separately.

Addressing must also be unambiguous. Define vehicle, system, component, and session identifiers, including allocation ownership and collision handling. The MAVLink component-ID guidance illustrates why identifiers are part of integration, not an incidental byte: several components can share a link, and routing or command targeting depends on consistent assignments. The same discipline applies to other protocols.

Automation does not remove these decisions. The automation and autonomy authority test helps determine who sets goals, changes plans, and handles off-nominal conditions. Record those answers in requirements and mode-transition logic.

Specify command and state semantics

A message name is not a behavior. For each command, define:

  • valid sender, receiver, modes, parameters, units, ranges, and preconditions
  • what constitutes acceptance, rejection, start, progress, completion, and failure
  • timeout origin and duration, retry policy, and maximum attempt count
  • sequence or transaction identifier, duplicate detection, and ordering rules
  • whether the operation is idempotent and what a repeated command does
  • state and event messages that let the GCS reconcile the final result

An acknowledgment can mean that a packet arrived, that a command passed validation, or that an operation completed. Those meanings cannot be inferred. The MAVLink command protocol, for example, defines command acknowledgments and result states, including accepted, in-progress, temporarily rejected, and failed outcomes. That protocol behavior is a documented example, not a requirement to use MAVLink.

Heartbeats need equally precise treatment. Define their source, expected rate, timeout, meaning, and relationship to actual command-path availability. The MAVLink heartbeat documentation says systems can infer disconnection after missing expected heartbeats, while rates and timeout behavior depend on the channel. It also warns that components unaware of their own failure state should not emit heartbeats that imply health. Those local liveness signals do not by themselves establish end-to-end C2 health.

Close the physical and electrical interface

For each installed device, control the connector manufacturer and part number, mating connector, contact assignment, keying, retention, cable construction, bend and strain limits, shielding, grounding, and installation inspection. Define voltage range at the device, steady and peak current, inrush, allowable ripple, brownout behavior, reverse-polarity protection, power sequencing, and what happens after power interruption.

For Ethernet, serial, USB, CAN, or another bus, state the physical-layer variant, speed, duplex or termination, isolation, grounding, and required cable length. State who supplies adapters and whether they are flight articles. Close thermal, environmental, and electromagnetic-compatibility assumptions rather than treating a laboratory connection as installed evidence.

The payload integration interface gate covers the broader mass, power, thermal, mechanical, data, timing, and software questions for an attached payload. A C2 integration should use the same gate discipline even when the component is called a modem, router, or onboard computer.

Define the network as an end-to-end service

Record IPv4 or IPv6 use, static or dynamic addressing, subnet ownership, ports, transport protocols, flow direction, maximum packet size, fragmentation policy, DNS dependence, multicast behavior, and firewall rules. Identify every NAT, carrier-grade NAT, proxy, tunnel, broker, and cloud relay. Document which side initiates a session and how it reconnects after address or path changes.

For multiple links, define route selection, route preference, session persistence, and whether paths are truly independent. Two modems may still share one airborne router, antenna system, power rail, identity provider, cloud gateway, or ground backhaul. Those common dependencies belong in the architecture and failure analysis.

Bandwidth, latency, jitter, loss, reordering, duplication, and data age need separate requirements in each direction. Average latency alone can hide a long tail. Specify the observation point, test duration, percentile or maximum, and traffic load. The RF, LTE, satellite, and mesh comparison and Starlink integration analysis explain why a bearer or internet service does not by itself define C2 performance.

Make time and traffic policy testable

For every timestamp, state the clock source, epoch, time zone or UTC treatment, resolution, accuracy, expected drift, synchronization method, and behavior during loss of synchronization. State where age is calculated and whether a receiver rejects data that are stale, too far in the future, or out of order. Logs from different components are difficult to correlate when their clocks do not share a controlled reference.

Traffic priorities must identify the classifier, marking, queue, scheduler, rate limit, congestion response, and owner at every hop. RFC 2474 defines the Differentiated Services field and per-hop behavior concept, while RFC 4594 gives service-class configuration guidance. Neither document guarantees that a provider will honor a marking end to end. Verify the installed path under simultaneous command, telemetry, video, and payload load.

Draw security boundaries explicitly

Identify the endpoint that authenticates each device, user, application, and message. Separately identify where confidentiality begins and ends. An authenticated command may still be visible in plaintext on an intermediate bus, and an encrypted tunnel does not prove that the sender is authorized to issue a particular command.

Document credential provisioning, secure storage, renewal, rotation, revocation, recovery, and replacement. Include factory, integration, operational, depot, and end-of-life states. Define maintenance ports, default accounts, local debug access, remote administration, audit events, and the conditions under which each is enabled.

NISTIR 8259A provides a general device baseline covering identification, configuration, data protection, logical access, software update, and cybersecurity-state awareness. It is not an aviation C2 approval standard. Its companion manufacturer activities guidance is useful for procurement because device capabilities alone are insufficient without support, documentation, vulnerability response, and lifecycle plans. Security architecture and threat treatment are developed further in the secure BVLOS communications guide.

List every health input and its units, sample interval, valid range, threshold, hysteresis, and confidence. Distinguish radio attachment, IP reachability, application session health, command round-trip success, and data freshness. A modem can report a healthy local link while an upstream gateway or GCS is unreachable.

For each degraded state, name the detector, decision owner, transition delay, traffic policy, operator alert, aircraft response, and recovery criteria. For failover, define whether commands can be in flight on both paths, how duplicates are suppressed, whether state is synchronized, and what happens to a partially completed transaction. Test restoration as carefully as initial switching.

The UAS lost-link procedures guide owns the operational response after loss is declared. The interface owns the signals and timing that support that declaration. A NASA C2 communication concept presentation depicts an end-to-end architecture with aircraft, ground station, service providers, and supporting services. Treat it as a research concept, not a mandated small-UAS architecture or performance specification.

Control logs, configuration, and updates

Require logs to identify hardware, firmware, software, configuration, mission, vehicle, user or command source, network path, and synchronized time. Capture commands, validation results, acknowledgments, mode changes, health transitions, failover decisions, authentication events, configuration changes, update events, and relevant link metrics. Define format, export method, retention, integrity protection, access control, storage exhaustion behavior, and who may redact operationally sensitive data.

An update interface needs an authenticated source, authorization policy, integrity check, compatibility check, interruption behavior, rollback or recovery path, audit record, and post-update verification. Define who approves updates and how emergency fixes differ from scheduled releases.

NASA's configuration-management guidance ties configuration identification, control, status accounting, and audits to a known product baseline. Applying that discipline prevents a test result for one software and configuration set from being presented as evidence for a different installed set.

Specify what the operator must see and control

The GCS interface should define the available commands, displayed state, units, refresh rate, data age, stale-data treatment, link identity, authority owner, security state, degraded modes, alerts, and required acknowledgments. Specify how the UI distinguishes command sent, accepted, in progress, completed, rejected, and timed out.

Protect against the wrong vehicle, wrong component, wrong mode, and stale display. Define confirmation rules for consequential actions and how an operator cancels or safely recovers a partial action. Test annunciations with real timing and failures, not only static screenshots.

Turn the ICD into acceptance evidence

Every interface requirement should have a unique identifier, verification method, responsible party, configuration, procedure, expected result, and recorded result. NASA's requirements verification matrix is a useful model for keeping those relationships visible. NASA's product verification guidance also emphasizes verification against requirements in the intended or a representative environment.

The following are editorial test examples, not values prescribed by the cited sources:

  • exercise every command through accepted, rejected, timed-out, duplicate, and interrupted paths
  • test minimum, normal, peak, and competing traffic while measuring both directions at named observation points
  • inject loss, latency, jitter, reordering, duplication, stale data, clock offset, and abrupt clock changes
  • remove each network path and common supporting dependency, then verify detection, failover, operator alerting, aircraft response, and recovery
  • present invalid, expired, revoked, and rotated credentials and verify that unauthorized control remains unavailable
  • interrupt power, sessions, configuration changes, and software updates, then verify deterministic recovery and preserved audit evidence
  • reboot components in different orders and confirm identity, routing, authority, configuration, and state converge correctly
  • correlate GCS, gateway, onboard, and controller logs to the same injected event and confirm the record is sufficient for diagnosis

Procurement checklist

Before selecting or accepting a component, require written answers to these questions:

  • Who owns each physical, electrical, network, application, security, and operator interface, and who accepts the complete system?
  • Which protocol and software versions interoperate, and what is the supported compatibility and end-of-life policy?
  • How are command authority, identity, acknowledgment, completion, retries, duplicates, ordering, and stale data handled?
  • Where do authentication and encryption start and stop, and who provisions, rotates, revokes, and recovers credentials?
  • What are the measured latency, loss, data-age, and capacity limits with every required traffic class active?
  • Which health signals drive degraded, failover, and lost-link states, and how were thresholds and recovery tested?
  • What dependencies remain common across supposedly redundant paths?
  • Which logs and configuration records will be delivered, in what format, and under what access and retention terms?
  • How are updates approved, authenticated, interrupted, recovered, rolled back, and supported through product end of life?
  • Which requirements remain unverified, what representative conditions were excluded, and who owns closure before operation?

A complete interface package does not guarantee operational approval. It does make claims reviewable, changes controllable, and failures reproducible. That is the minimum foundation for deciding whether the selected C2 architecture can support the intended aircraft and operation.
