Wind Turbine Drone Inspection: Blade Imaging and Defect Classification

On This Page

• Set the scope before capture
• Capture blade detail that survives review
• Separate defect type, severity, and action
• Understand what the sensors cannot establish
• Specify measurable deliverables
• Questions to settle with the provider

Set the scope before capture

A commercial workflow connects preparation, image capture, quality review, defect assessment, and maintenance handover. For example, DJI's description of the 3DX Blade Platform explicitly separates drone acquisition from processing, review, and analysis. Buying the flight alone leaves those later responsibilities unresolved.

Start with a turbine and blade register. Supply the turbine model, blade identity and numbering convention, available drawings, previous inspection images, known repairs, and the question driving this visit. A routine condition survey, a post-event investigation, and verification of a completed repair need different comparison material. DNV's blade-maintenance guidance recommends a lifetime data model incorporating inspections, repairs, manufacturing records, and operational or environmental events.

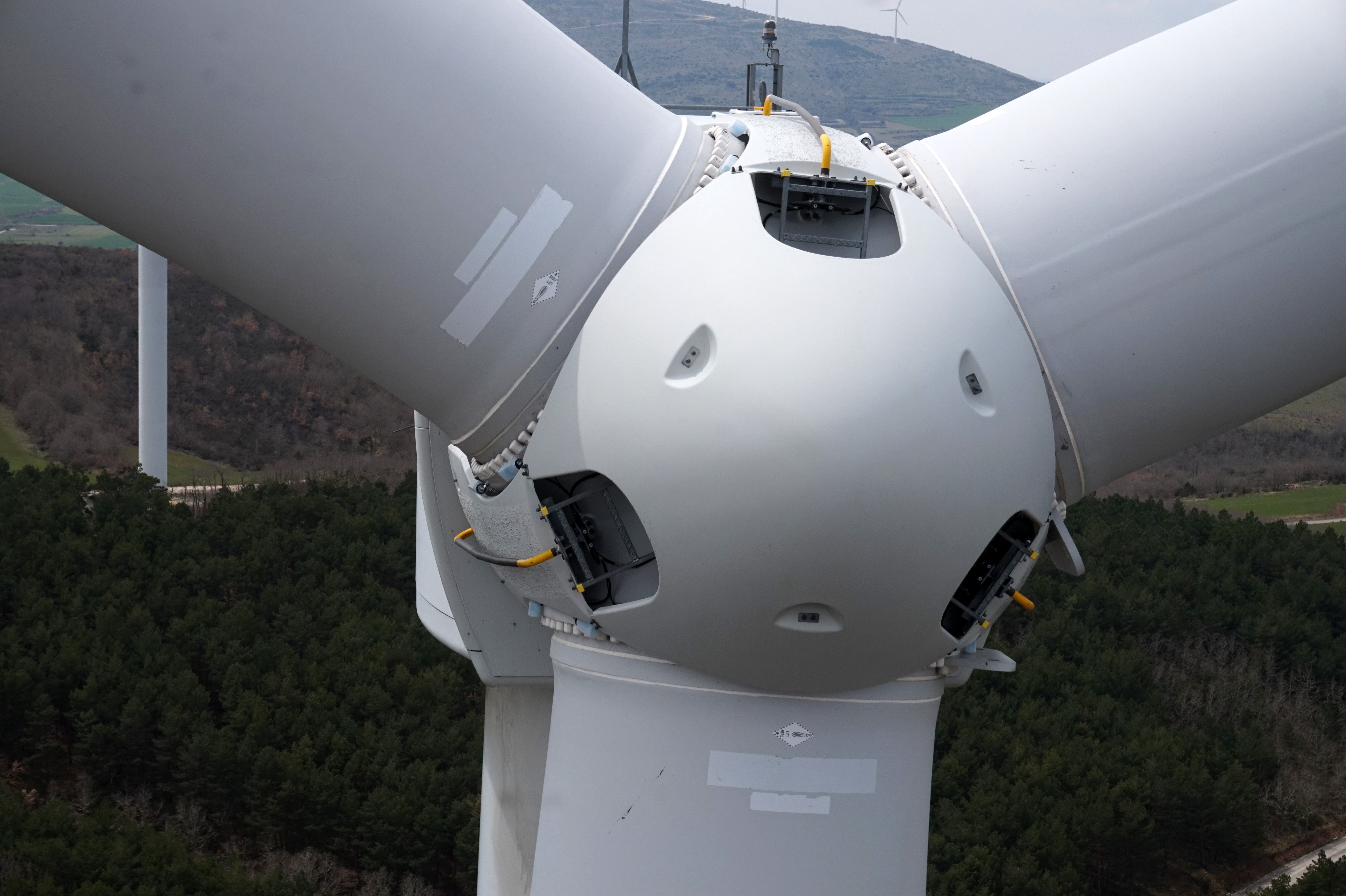

Define coverage by blade surface and span. The leading edge meets the airflow; the trailing edge is the rear edge. The pressure and suction sides are the two broad aerodynamic faces. Ask the provider to identify coverage of each, including the root transition and tip, with inaccessible or unreadable regions marked separately.

This article assumes a stopped-rotor external visual inspection. Establish the shutdown, rotor-positioning, restart, and site-access arrangements with the turbine operator under the applicable equipment procedures. Do not copy a stop angle or flight clearance from another system: Shi and colleagues' inspection research shows why actual blade orientation is an input to route planning.

Record the operating limits and stop-work conditions for the proposed aircraft, turbine arrangement, and site. Separately define when lighting or motion makes the imagery unsuitable even if flight remains permitted. The commissioning brief should name the person receiving urgent findings, including those discovered before the ordinary report is finished.

Capture blade detail that survives review

Camera megapixels alone do not describe usable inspection detail. Lens choice, distance, viewing angle, focus, exposure, and motion determine what reaches the image. A flight can complete its route while producing a bright, blurred, or poorly framed patch that cannot answer the inspection question.

Shi and colleagues describe a specific exposure problem: the blade and background can have very different brightness. Exposure optimized for the whole frame may lose blade detail. Their proposed system meters the blade region during acquisition. The buyer implication is simple: request original, full-resolution examples across the proposed lighting conditions, including difficult views, before accepting a camera specification as proof of capability.

For dimensional work, ask for the image scale at the blade surface, its method of determination, and the uncertainty of the reported measurement. Ground sampling distance is often used as shorthand, but the subject here is a curved surface viewed at changing angles.

As an illustrative calculation, if an image represents 1 mm per pixel at the relevant surface, a 5 mm feature spans about five pixels. That arithmetic does not establish reliable detection, crack-width accuracy, or a minimum detectable defect. Contrast, blur, and geometry still matter. A provider should demonstrate the proposed task using independently checked reference features.

Photogrammetry reconstructs geometry from overlapping views, but a smooth white blade may offer too few distinguishable features. The Met4Wind inspection guide explains how texture, range, and lighting affect reconstruction. Require access to source images and documented gaps alongside a stitched view or 3D model. A continuous-looking model should not conceal missing observations.

Before demobilization, review coverage and image quality against the agreed scope. Reacquire unsuitable views when the approved conditions permit; otherwise, record precisely what remains uninspected.

Separate defect type, severity, and action

Classification should preserve three separate judgments: what appears in the image, how consequential the finding may be, and what action is authorized. A label such as erosion describes a condition. A severity grade ranks concern under a particular rubric. A repair instruction requires an engineering decision tied to the blade and its history.

The following table is a suggested reporting approach, not a universal severity scale. Its distinction between visible indications and hidden condition follows Sandia's inspection research; its separation of structural and aerodynamic effects follows Met4Wind.

Keep an uncertain observation uncertain. A second viewing angle may clarify a line; a confident software label cannot supply missing physical evidence.

DNV's 2022 guidance described disagreement in damage categorization and management. For a current contract, obtain the provider's actual rubric, revision date, definitions, and mapping to the owner's terminology. A bare category number is not sufficient for comparing suppliers or successive surveys.

What AI classification adds

An image model can locate candidate regions, assign labels, or highlight anomalies for review. Those are different tasks with different measures of success. In Barker and colleagues' BladeNet study, the reported average precision for blade detection differed substantially between two datasets; surface-anomaly detection was evaluated separately. A blade-detection score therefore must not be presented as defect-classification accuracy.

Ask for results on representative blade types and capture conditions, with separate reporting for each defect class. Recall describes how many confirmed defects were found; precision describes how many flagged findings were correct. Require both, together with the reference-label method and uncertain-case handling. Preserve the original prediction and the human revision. These are procurement recommendations based on the study's task and dataset distinctions, not a claim about every commercial model.

Understand what the sensors cannot establish

Ordinary visible-light imaging records the exposed surface. Sandia distinguishes that work from methods intended to investigate hidden damage, including phased-array ultrasound and thermography. Its thermography research used a controlled heating-and-cooling sequence involving sunlight and blade pitch. Adding an infrared camera does not automatically reproduce that inspection method.

Choose follow-up work from the unresolved question. Suspected internal damage may require access and a suitable nondestructive examination method selected by the responsible specialist. RES describes combining external and internal inspection records to inform whether damage needs immediate repair. That is an attributed provider workflow, not proof that an external survey alone resolves the decision.

Likewise, visible erosion does not yield an annual energy-loss percentage by inspection alone. Met4Wind separates structural categorization from aerodynamic degradation and explains that overall performance depends on the location and extent of damage as well as turbine and wind conditions. Treat an energy-loss estimate as a separate calculation with disclosed inputs.

The general distinction between observation, measurement, and diagnosis is developed in what drone-inspection evidence can prove. For this job, each unresolved question should have a named next step rather than disappearing into an overall turbine score.

Specify measurable deliverables

Use the following as a proposed contract schedule. It translates the capture, assessment, and maintenance handoffs above into items a buyer can inspect; it is not a published industry standard.

Agree on what a coverage percentage counts. For example, if 114 of 120 predefined regions contain usable imagery, region-based usable coverage is 114 ÷ 120 × 100 = 95%. This illustrative value is not surface-area coverage, defect-detection probability, or evidence that the six missing regions are unimportant. Retain their locations.

For repeat surveys, require the same blade identity, surface convention, and location reference. A larger-looking mark in a new crop does not establish growth. Compare scale, viewing geometry, and measurement uncertainty before reporting a dimensional change; preserve a visual-only comparison when those checks are unavailable.

A PDF is useful for reading, but request a structured export when findings must become work orders. Define how original files, annotations, IDs, and history can be retained after the service ends. Test that handover with a sample before commissioning the full campaign.

Questions to settle with the provider

• What decision will the inspection support, and which additional examination remains outside the quoted scope?
• Which blade surfaces and regions are included, and how are unreadable views reported and recollected?
• What evidence demonstrates the smallest relevant feature under the proposed capture conditions?
• Who reviews classifications, which rubric applies, and who decides urgency or operating restrictions?
• Does the quote include image review, engineering assessment, structured export, and reinspection of rejected capture, or only acquisition?
• How are urgent findings delivered, and can the owner retain usable records independently of the hosted viewer?

Compare proposals on the accepted inspection record and remaining work. Flight duration is only one part of the job. A useful blade survey leaves the owner with located findings, visible limitations, and a clear route from each concern to the next maintenance decision.

Source notes

• DJI: 3DX Blade Platform. Ecosystem documentation identifying capture, processing, review, and analysis stages.
• DNV: Practical steps towards better blade maintenance. Technical advisory article from 2022 on lifetime records and categorization challenges.
• Shi et al.: Automated UAV-based Wind Turbine Blade Inspection. Original 2025 research preprint on blade orientation and exposure during capture; results apply to its studied system.
• Met4Wind: Good practice guide on the inspection of wind turbines for aerodynamic performance. Institutional technical guide on surface measurement and aerodynamic interpretation.
• Sandia: Research on detecting wind blade damage. Laboratory account from 2019 distinguishing surface imaging from research methods for hidden damage.
• Barker et al.: Semi-Supervised Surface Anomaly Detection of Composite Wind Turbine Blades From Drone Imagery. Original research distinguishing blade detection from surface-anomaly detection and reporting dataset-specific results.
• RES: Blade inspections just got smarter. Provider account from June 2025 of combining internal and external inspection information.

Last checked: September 6, 2026.
